Shell mill adapter HSK-A 63, Ø 27 mm / A 100 mm
€79.06*
€94.08 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
17-KD63A-27-100
Customs tariff number
8466 1038
European Article Number
4049794034316
Weight
1,85 kg
Stock:
3
Related links:
Request Item
Product information "Shell mill adapter HSK-A 63, Ø 27 mm / A 100 mm"
Combination shell mill adapter, DIN 6358 HSK-A
- HSK 63A
- balanced G = 6,3 15.000 U/min.
- D: 27 mm
- A: 100 mm
| Size: | HSK-A 63 |
|---|---|
| Type: | Combination shell mill adaptors |
| Ø : | 27 mm |

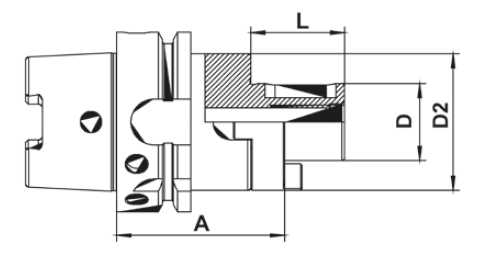

Technical Data
| Größe / Size |
D mm |
D2 mm |
A mm |
L mm |
| HSK-A 63 | 16 | 32 | 60 | 27 |
| HSK-A 63 | 16 | 32 | 100 | 27 |
| HSK-A 63 | 22 | 40 | 60 | 31 |
| HSK-A 63 | 22 | 40 | 100 | 31 |
| HSK-A 63 | 27 | 48 | 60 | 33 |
| HSK-A 63 | 27 | 48 | 100 | 33 |
| HSK-A 63 | 32 | 58 | 60 | 38 |
| HSK-A 63 | 32 | 58 | 100 | 38 |
| HSK-A 63 | 40 | 70 | 70 | 41 |
| Gewuchtet G = 6,3 15.000 U/min. / Balanced G = 6,3 15.000 U/min. |
||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
