Hydraulic chuck HSK-A 63, Ø 20 x 90 mm
€191.52*
Available, delivery time: 1-3 workdays
Product information "Hydraulic chuck HSK-A 63, Ø 20 x 90 mm"
Hydraulic chuck DIN 69893, HSK-A
- balanced G = 2,5 20.000 U/min.
- HSK-A 63
- d: 20 mm
- L: 90 mm
- incl. wrench
| Size: | HSK-A 63 |
|---|---|
| Type: | Hydraulic chucks |
| Ø : | 20 mm |

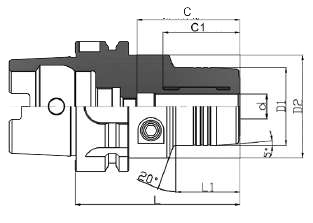

Technical Data
| Größe / Size |
d mm |
D1 mm |
D2 mm |
L mm |
L1 mm |
C1 mm |
C mm |
| HSK63A | 6 | 32 | 48 | 80 | 32 | 29 | 46 |
| HSK63A | 8 | 34 | 50 | 80 | 32 | 30 | 46 |
| HSK63A | 10 | 36 | 52,5 | 80 | 32 | 31 | 50 |
| HSK63A | 12 | 38 | 52,5 | 80 | 32 | 32 | 50 |
| HSK63A | 16 | 42 | 52,5 | 90 | 41 | 40 | 60 |
| HSK63A | 20 | 46 | 52,5 | 90 | 41 | 40 | 60 |
| Gewuchtet G = 2,5 20.000 U/min. / Balanced G = 2,5 20.000 U/min. |
|||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
