Shrink chuck HSK-A 63, Ø 5 mm / A 120 mm
€199.37*
€237.25 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
17-SHF63A-5-120
Customs tariff number
8466 1038
European Article Number
4049794668870
Weight
1,25 kg
Stock:
1
Related links:
Request Item
Product information "Shrink chuck HSK-A 63, Ø 5 mm / A 120 mm"
Shrink chuck HSK - form A
- DIN 69893
- balanced G = 6,3 15.000 U/min.
- HSK-A 63
- D2: 5 mm
- A: 120 mm
| Size: | HSK-A 63 |
|---|---|
| Type: | Shrink chucks |
| Ø : | 5 mm |

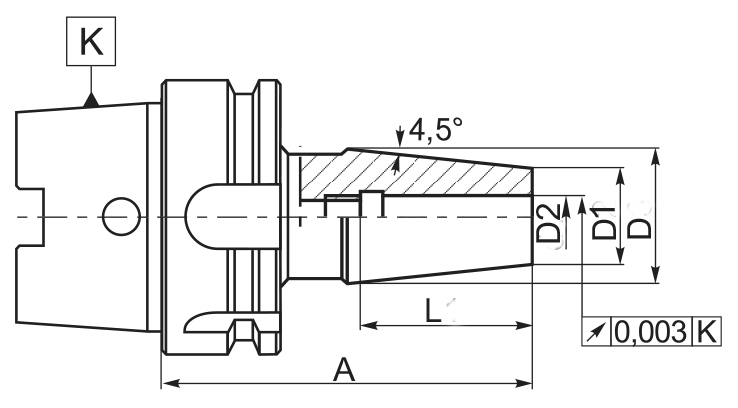

Technical Data
| Größe / Size |
D2 mm |
D1 mm |
D mm |
L mm |
A mm |
| HSK-A 63 | 3 | 10 | 18 | 36 | 80 |
| HSK-A 63 | 3 | 10 | 18 | 36 | 120 |
| HSK-A 63 | 4 | 10 | 18 | 36 | 80 |
| HSK-A 63 | 4 | 10 | 18 | 36 | 120 |
| HSK-A 63 | 5 | 16 | 22 | 36 | 80 |
| HSK-A 63 | 5 | 16 | 22 | 36 | 120 |
| HSK-A 63 | 6 | 21 | 27 | 36 | 80 |
| HSK-A 63 | 6 | 21 | 27 | 36 | 120 |
| HSK-A 63 | 8 | 21 | 27 | 36 | 80 |
| HSK-A 63 | 8 | 21 | 27 | 36 | 120 |
| HSK-A 63 | 10 | 24 | 32 | 42 | 85 |
| HSK-A 63 | 10 | 24 | 32 | 42 | 120 |
| HSK-A 63 | 12 | 24 | 32 | 47 | 90 |
| HSK-A 63 | 12 | 24 | 32 | 47 | 120 |
| HSK-A 63 | 14 | 27 | 34 | 47 | 90 |
| HSK-A 63 | 16 | 27 | 34 | 50 | 95 |
| HSK-A 63 | 16 | 27 | 34 | 50 | 120 |
| HSK-A 63 | 18 | 33 | 42 | 50 | 95 |
| HSK-A 63 | 20 | 33 | 42 | 52 | 100 |
| HSK-A 63 | 20 | 33 | 42 | 52 | 120 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
