Shrink chuck HSK-A 63, Ø 6 mm / A 80 mm
€94.61*
€112.59 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
17-SHF63A-6-80
Customs tariff number
8466 1038
European Article Number
4049794668894
Weight
0,95 kg
Stock:
11
Related links:
Request Item
Product information "Shrink chuck HSK-A 63, Ø 6 mm / A 80 mm"
Shrink chuck HSK - form A
- DIN 69893
- balanced G = 6,3 15.000 U/min.
- HSK-A 63
- D2: 6 mm
- A: 80 mm
| Size: | HSK-A 63 |
|---|---|
| Type: | Shrink chucks |
| Ø : | 6 mm |

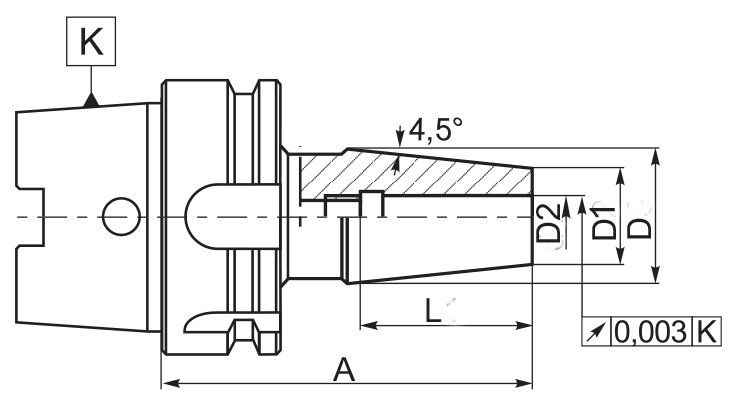

Technical Data
| Größe / Size |
D2 mm |
D1 mm |
D mm |
L mm |
A mm |
| HSK-A 63 | 3 | 10 | 18 | 36 | 80 |
| HSK-A 63 | 3 | 10 | 18 | 36 | 120 |
| HSK-A 63 | 4 | 10 | 18 | 36 | 80 |
| HSK-A 63 | 4 | 10 | 18 | 36 | 120 |
| HSK-A 63 | 5 | 16 | 22 | 36 | 80 |
| HSK-A 63 | 5 | 16 | 22 | 36 | 120 |
| HSK-A 63 | 6 | 21 | 27 | 36 | 80 |
| HSK-A 63 | 6 | 21 | 27 | 36 | 120 |
| HSK-A 63 | 8 | 21 | 27 | 36 | 80 |
| HSK-A 63 | 8 | 21 | 27 | 36 | 120 |
| HSK-A 63 | 10 | 24 | 32 | 42 | 85 |
| HSK-A 63 | 10 | 24 | 32 | 42 | 120 |
| HSK-A 63 | 12 | 24 | 32 | 47 | 90 |
| HSK-A 63 | 12 | 24 | 32 | 47 | 120 |
| HSK-A 63 | 14 | 27 | 34 | 47 | 90 |
| HSK-A 63 | 16 | 27 | 34 | 50 | 95 |
| HSK-A 63 | 16 | 27 | 34 | 50 | 120 |
| HSK-A 63 | 18 | 33 | 42 | 50 | 95 |
| HSK-A 63 | 20 | 33 | 42 | 52 | 100 |
| HSK-A 63 | 20 | 33 | 42 | 52 | 120 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||
