Hard master jaws for independent chucks Ø 800 mm
Product number:
398573580000
Customs tariff number
84662091
European Article Number
Weight
15,2 kg
Stock:
0
Related links:
Request Item
Product information "Hard master jaws for independent chucks Ø 800 mm"
Hard master jaws for Bison
independent chucks Ø 800 mm
- material: steel
- 4 pieces/set
| Jaws: | Hard base jaws |
|---|---|
| Jaws for Ø: | 800 mm |
| Make: | Bison |

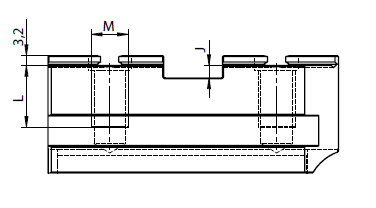

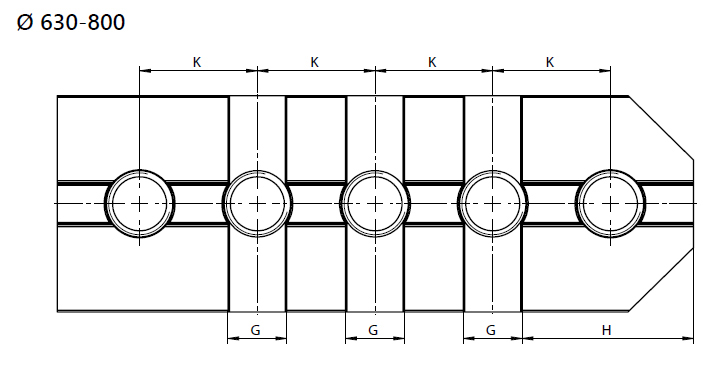

Technical Data
| Futtergröße / Chuck size |
A | B | C | D | E | F | G | H | J | K | L | M* | LH Gewinde / LH Thread |
kg pro Stück / kg per piece |
| 200 | 79 | 32 | 32 | 8,7 | 10 | 7,94 | 12,96 | 33,2 | 4,0 | 22,25 | 14,0 | M10 | Tr 28x5 | 0,3 |
| 250 | 94 | 32 | 38 | 8,7 | 10 | 12,70 | 19,04 | 37,5 | 4,0 | 27,00 | 20,0 | M12 | Tr 28x5 | 0,6 |
| 315 | 110 | 40 | 39 | 9,7 | 12 | 12,70 | 19,04 | 45,4 | 4,0 | 31,75 | 17,5 | M12 | Tr 32x6 | 0,9 |
| 400 | 129 | 40 | 44 | 9,7 | 12 | 12,70 | 19,04 | 54,9 | 7,2 | 38,10 | 22,0 | M16 | Tr 32x6 | 0,9 |
| 500 | 168 | 52 | 59 | 11,7 | 15 | 12,70 | 19,04 | 55,5 | 7,2 | 38,10 | 35,0 | M20 | Tr 36x6 | 2,4 |
| 630 | 206 | 52 | 59 | 11,7 | 15 | 12,70 | 19,04 | 55,5 | 7,2 | 38,10 | 35,0 | M20 | Tr 40x6 | 2,7 |
| 800 | 206 | 70 | 59 | 15,7 | 20 | 12,70 | 19,04 | 55,5 | 7,2 | 38,10 | 33,5 | M20 | Tr 44x8 | 3,8 |
| * Schrauben sind im Lieferumfang enthalten / * Srews are included in delivery |
||||||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
