Heavy-duty tilting plate SSP-150, 90°
€1,232.86*
€1,467.10 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
14-SSP-150
Customs tariff number
8466 3000
European Article Number
4049794068366
Weight
16,55 kg
Stock:
2
Related links:
Request Item
Product information "Heavy-duty tilting plate SSP-150, 90° "

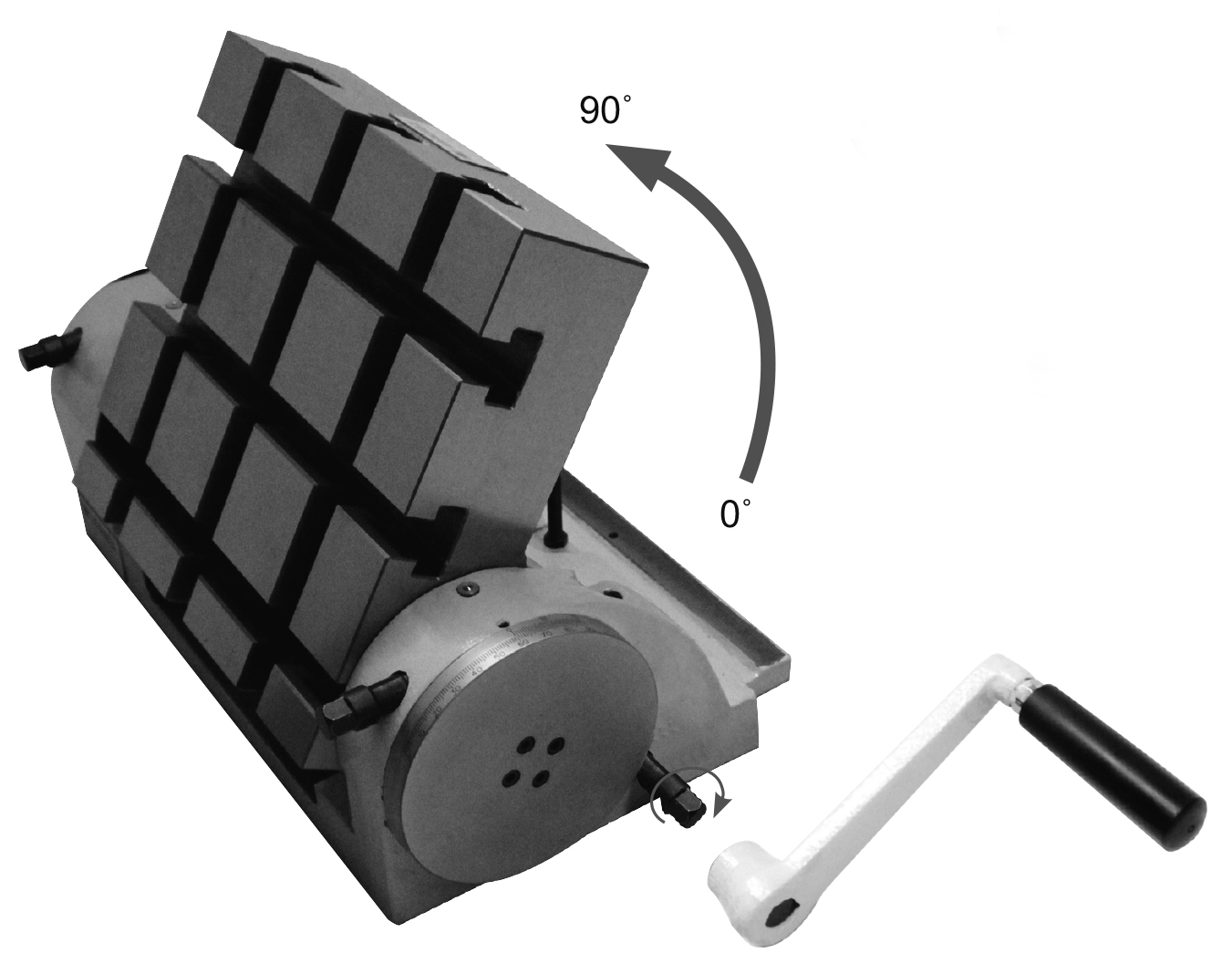

Heavy-duty tilting plate 90°, type SSP-150
- used for mounting of different devices,
such as vices, lathe chucks, etc.
- 156 x 150 mm
- loading capacity: horizontal 30 kg / vertical 12 kg

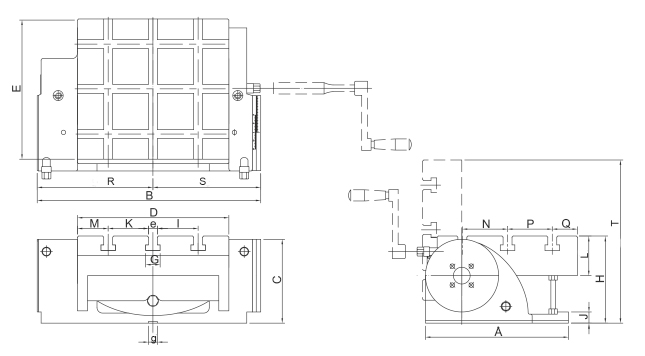

Technical Data
| A mm |
B mm |
C mm |
D mm |
E mm |
Positioniernut g / Positioning slot g |
G mm |
H mm |
F mm |
J mm |
| 180 | 285 | 113 | 156 | 150 | 16 | 20 | 115 | 44 | 16 |
| 255 | 399 | 150 | 270 | 258 | 16 | 22 | 155 | 72 | 20 |
| 300 | 449 | 169 | 320 | 298 | 16 | 26 | 169 | 92 | 25 |
| L mm |
K mm |
M mm |
N mm |
P mm |
Q mm |
R mm |
S mm |
Nut (e) / Slot (e) mm |
T mm |
| 50 | 44 | 28 | 50 | 50 | 30 | 145 | 140 | 10 | 251 |
| 70 | 72 | 55 | 80 | 80 | 45 | 207 | 192 | 12 | 291 |
| 75 | 92 | 60 | 98 | 100 | 48 | 232 | 217 | 16 | 305 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
| Belastbarkeit / Loading capacity |
Horizontal / Horizontal kg |
Vertikal / Vertical kg |
| 14-SSP-150 | 30 | 12 |
| 14-SSP-270 | 45 | 20 |
| 14-SSP-320 | 70 | 35 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
