Swivel and tiltable angle plate 200 x 100 mm
€415.08*
€493.95 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-MDS-200
Customs tariff number
8466 3000
European Article Number
4049794681459
Weight
15 kg
Stock:
2
Related links:
Request Item
Product information "Swivel and tiltable angle plate 200 x 100 mm"
Swivel and tiltable angle plate size 200 x 100 mm
- 360° rotatable, 30° tiltable
- fast ans simple setting
- plate is precisely ground
- loading capacity: 15 kg

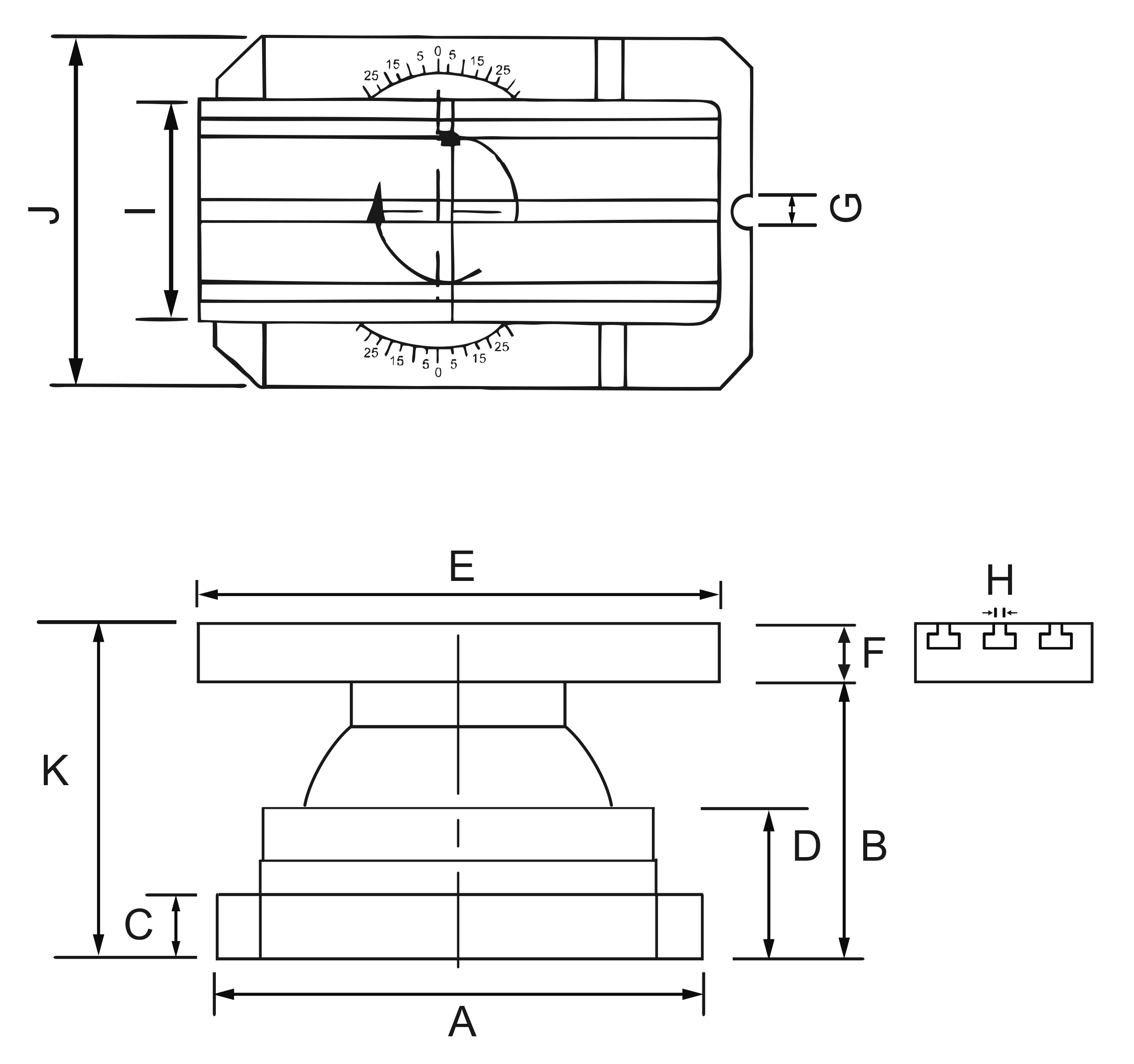

Technical Data
| A mm |
B mm |
C mm |
D mm |
E mm |
I mm |
F mm |
G mm |
H mm |
J mm |
K mm |
| 190 | 120 | 20 | 72 | 200 | 100 | 34 | 17 | 12 | 140 | 153 |
| 190 | 120 | 20 | 72 | 250 | 126 | 34 | 17 | 12 | 140 | 153 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
