Universal dividing head VUT, MT 4
€866.81*
€1,031.50 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-VUT-2A
Customs tariff number
8466 3000
European Article Number
4049794051474
Weight
47 kg
Stock:
2
Related links:
Request Item
Product information "Universal dividing head VUT, MT 4"
Universal dividing head VUT type 134, MT 4
- any angle possible by direct or indirect indexing
- direct indexing in 2, 3, 4, 6, 8, 12 and 24 sections
- indirect indexing of all numbers from 2 to 50
and many numbers up to 380 possible (ratio 1:40)
- easy conversion to direct indexing
- horizontally / vertically tiltable from -10° to +90°

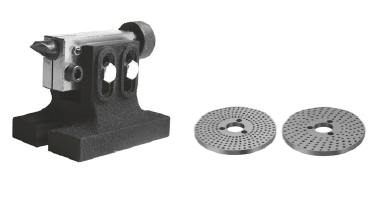

- incl. tailstock and 2 dividing plates

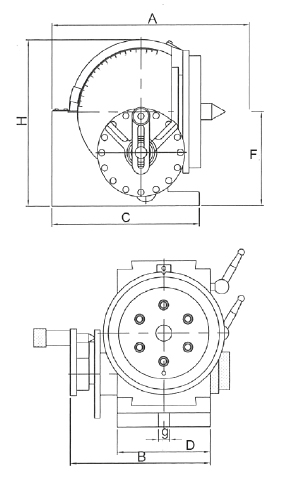

Technical Data
| F mm | MK / MT | A mm | B mm | H mm | C mm | D mm | Nut (g) / Slot (g) mm | Spindel / Spindle Ø | kg |
| 134 | 4 | 285 | 202 | 237 | 213 | 134 | 16 | 25 | 36 |
| Inkl. Reitstock und 2 Teilscheiben / Incl. Tailstock and 2 diving plates | |||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved | |||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
