Jaw turning fixture for chucks 200-315 mm
€540.79*
€643.54 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-ADP3-315
Customs tariff number
8466 2091
European Article Number
4049794060483
Weight
6 kg
Stock:
3
Related links:
Request Item
Product information "Jaw turning fixture for chucks 200-315 mm"
Jaw turning fixture for three-jaw scroll chucks Ø 200 - 315 mm

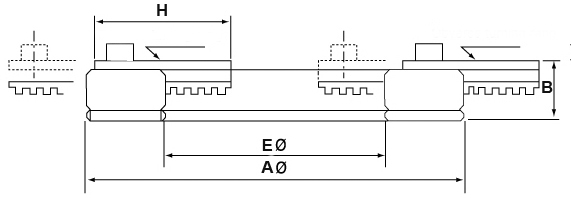

Technical Data
Für Futter / For chuck |
E Ø mm |
A Ø mm |
B mm |
H mm |
Eingangsbereiche / adjusting ranges mm |
Max. Spannkraft / Max. gripping force (kN) |
Max. Drehzahl / Max. speed (min-1) |
kg |
Ø 125 - 200 | 100 | 170 | 26 | 61 | 56-124 / 134-200 | 14,7 | 800 | 3 |
Ø 160 - 250 | 125 | 200 | 26 | 61 | 85-150 / 170-230 | 14,7 | 700 | 4 |
Ø 200 - 315 | 160 | 248 | 31 | 80 | 100-190 / 220-300 | 17,1 | 600 | 6 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
