Jaw turning rings Premium (3-jaws) Ø 80-250 mm
Product information "Jaw turning rings Premium (3-jaws) Ø 80-250 mm"

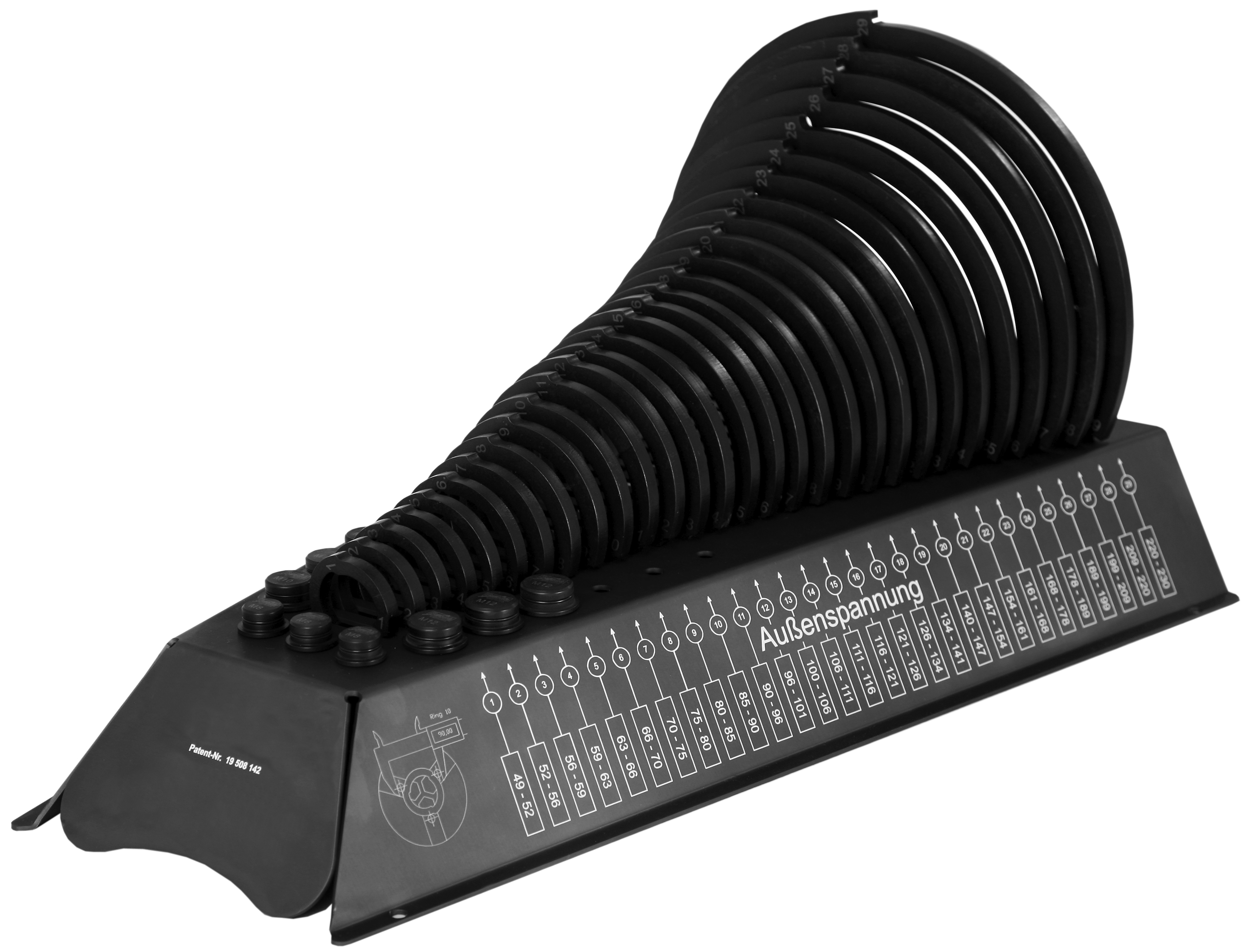

Jaw turning rings Premium for 3-jaw lathe chucks, up to Ø 250 mm
- set premium version, size: L-3
- range: Ø = 80-250 mm
- rings: 29
- incl. clamping pins: 3 x M8 / 3 x M10 / 3 x M12
Flexible, adjustable pins, which can compensate
up to 1,5 mm of the bore.
- internal and external clamping with only 1 ring
- infinitely adjustable clamping range for all chucks
- exact adjustment of boring diameter (1/10 mm precision)
- easy of handling
- less clamping jaws required
- reduced set up times
This set comprises individual rings from hardened
special-purpose steel each consisting of 3 curved segments (3 x 120°)
to be arranged both at the inner and outer circumference.
These patented rings allow to turn-out jaws to a
maximum precision. Thanks to an infinite adjustability it is
possible to remove an exact amount of material thus
saving set up time and costs.
Technical Data
| Ausführung / Version |
Größe / Size |
Ringe 6 mm / Rings 6 mm |
Ringe 10 mm / Rings 10 mm |
Spannbolzen inkl. / incl. Clamping pins |
Arbeitsbereich / Range |
| Standard | S-3 | 20 | - | Je / each 3 x M8 / M10 | Ø = 80 - 200 mm |
| Standard | L-3 | 29 | - | Je / each 3 x M8 / M10 / M12 | Ø = 80 - 250 mm |
| Standard | LX-3 | 16 | 13 | Je / each 3 x M10 / M12 / M16 | Ø = 80 - 315 mm |
| Standard | XL-3 | - | 10 | Je / each 3 x M16 / M20 | Ø = 315 - 630 mm |
| Premium | S-3 | 20 | - | Je / each 3 x M8 / M10 | Ø = 80 - 200 mm |
| Premium | L-3 | 29 | - | Je / each 3 x M8 / M10 / M12 | Ø = 80 - 250 mm |
| Premium | LX-3 | 16 | 13 | Je / each 3 x M10 / M12 / M16 | Ø = 80 - 315 mm |
| Premium | XL-3 | - | 10 | Je / each 3 x M16 / M20 | Ø = 315 - 630 mm |
| Weitere Spannbolzen auf Anfrage lieferbar / Other clamping pins available upon request |
|||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||
