Solid jaws for four-jaw lathe chuck Ø 80 mm
€45.14*
€53.72 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
D80/4-MB
Customs tariff number
8466 2091
European Article Number
4049794070437
Weight
0,35 kg
Stock:
16
Related links:
Request Item

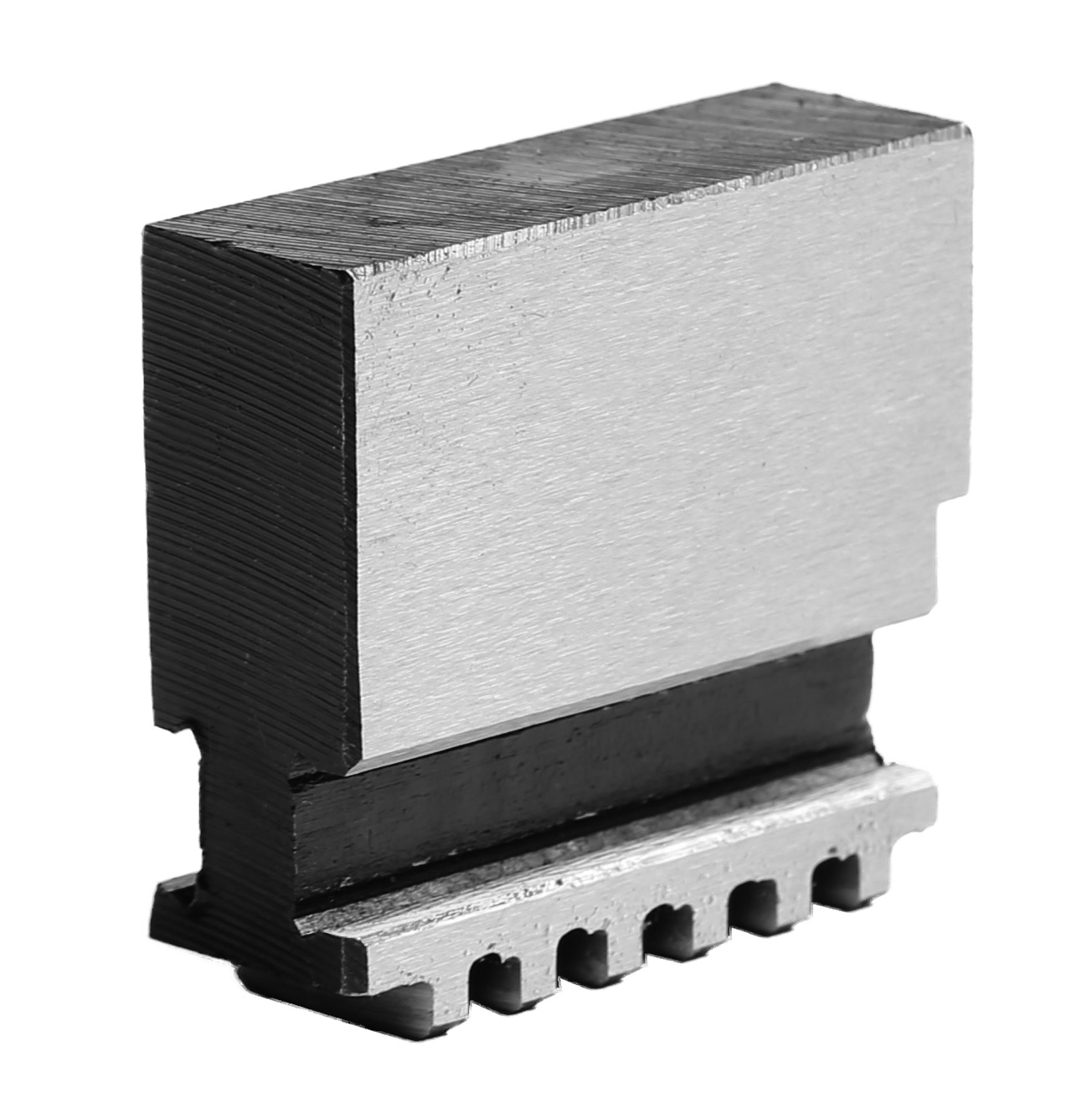

Product information "Solid jaws for four-jaw lathe chuck Ø 80 mm"
Soft solid jaws for four-jaw lathe chuck Basic
- material C45
- 4 pieces per set
| Jaws: | Soft solid jaws |
|---|---|
| Jaws for lathe chucks type: | 4-jaw lathe chucks |
| Jaws for Ø: | 80 mm |
| Make: | Basic |

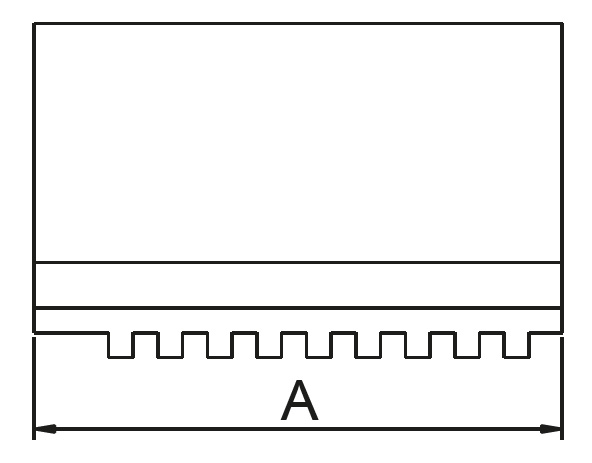

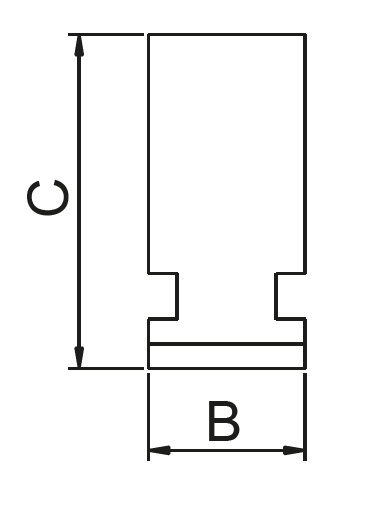

Technical Data
| Für / for Ø mm |
A mm |
B mm |
C mm |
| 80 | 32 | 12 | 33 |
| 100 | 42 | 15 | 38 |
| 125 | 56 | 16 | 45 |
| 160 | 70 | 18,5 | 54 |
| 200 | 85 | 22 | 61 |
| 250 | 105 | 27 | 69 |
| 315 | 130 | 36 | 91 |
| 400 | 138 | 36 | 91 |
| Preis pro Satz / Price per set | |||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
