5C-collet chuck with radial fine adjustment
Product number:
ZE-SF5C-125FE
Customs tariff number
8466 2091
European Article Number
4049794053737
Weight
6,75 kg
Stock:
0
Related links:
Request Item
Product information "5C-collet chuck with radial fine adjustment"
5C-collet chuck, centre mount with radial fine adjustment
- can be used for turning, facing, boring, grinding and milling operations
- the simple wrench operated scroll provides an uniform, distortion free
clamping of workpieces and short collet exchange times
- incl. wrench and fixing screws
| DIN: | centre mount |
|---|---|
| Make: | Zentra |
| Type: | 5C collet chucks |
| for collets: | 5C |
| Ø : | 125 mm |

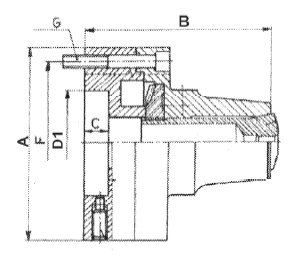

Technical Data
| C mm |
A Ø mm |
D1 mm |
F mm |
G mm |
B mm |
RPM MAX min-1 |
kg |
| 15 | 126 | 55 | 108 | 3 x M8 x 70 | 127 | 6000 | 6 |
| Inkl. Spannschlüssel und Befestigungsschrauben / Incl. wrench and fixing screws |
|||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
