Four-jaw lathe chuck 250 mm DIN 6350 drilled
Product information "Four-jaw lathe chuck 250 mm DIN 6350 drilled"
Four-jaw lathe chuck Ø 250 mm, cast iron DIN 6350,
one-piece jaws, drilled from front
- centre mount according to DIN 6350
- drilled on pitch circle "F", 3 x 120°
- chuck body made from cast iron
- one-piece jaws
- scroll plate is drop forged of fine-alloy steel,
and case hardened
- guide ways and wear surfaces ground
- suitable for all types of lathes and different kinds of
milling, drilling and CNC devices
- incl. 1 set each of solid jaws internally / externally stepped,
wrench, fixing screws
| DIN: | 6350 |
|---|---|
| Jaws: | one-piece jaws |
| Make: | Zentra |
| Material: | Cast iron |
| Type: | 4-jaw lathe chucks |
| Ø : | 250 mm |

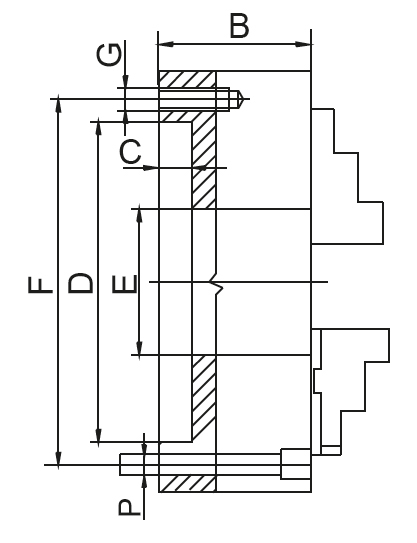

Technical Data
| A (Ø) mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
P Für Schrauben / for screws |
H mm |
J mm |
RPM MAX min -1 |
kg |
| 125 | 56 | 4 | 95 | 32 | 108 | 3xM8 | 3xM8 | 51 | 20 | 3200 | 5 |
| 160 | 64 | 4 | 125 | 42 | 140 | 6xM10 | 3xM10 | 70 | 32 | 3000 | 10 |
| 200 | 75 | 4 | 160 | 55 | 176 | 6xM10 | 3xM10 | 85 | 29 | 2500 | 16,6 |
| 250 | 85 | 5 | 200 | 76 | 224 | 6xM12 | 3xM12 | 105 | 34 | 2000 | 29 |
| Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben / Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws |
|||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.

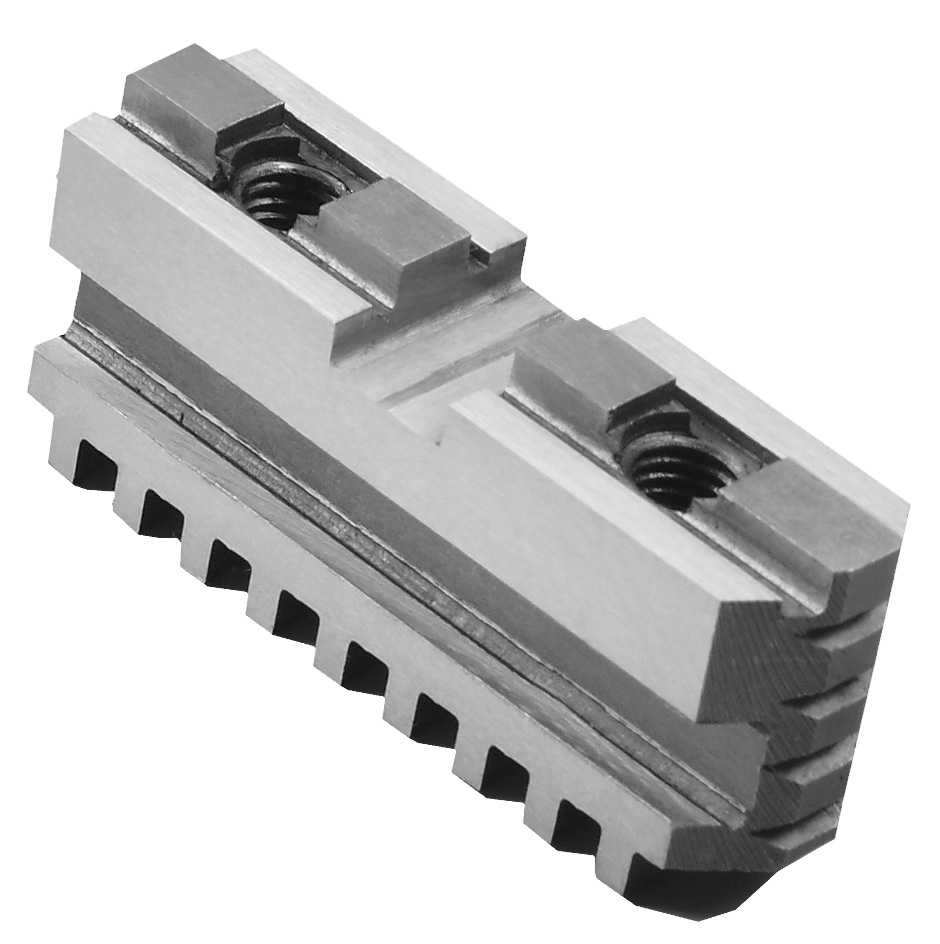

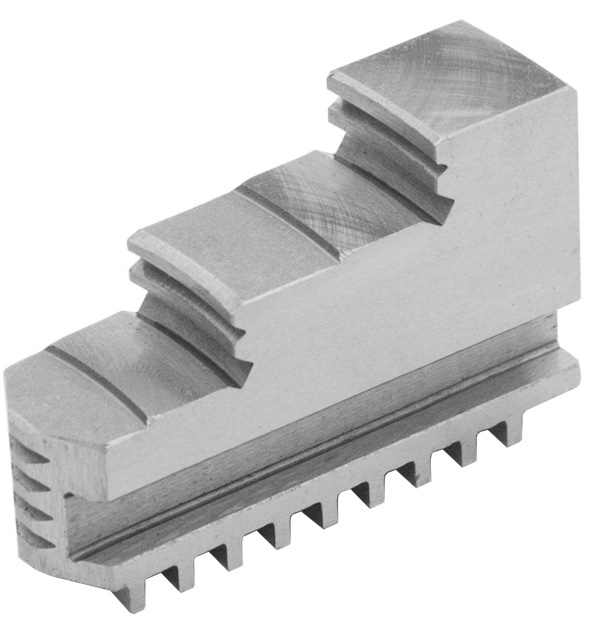

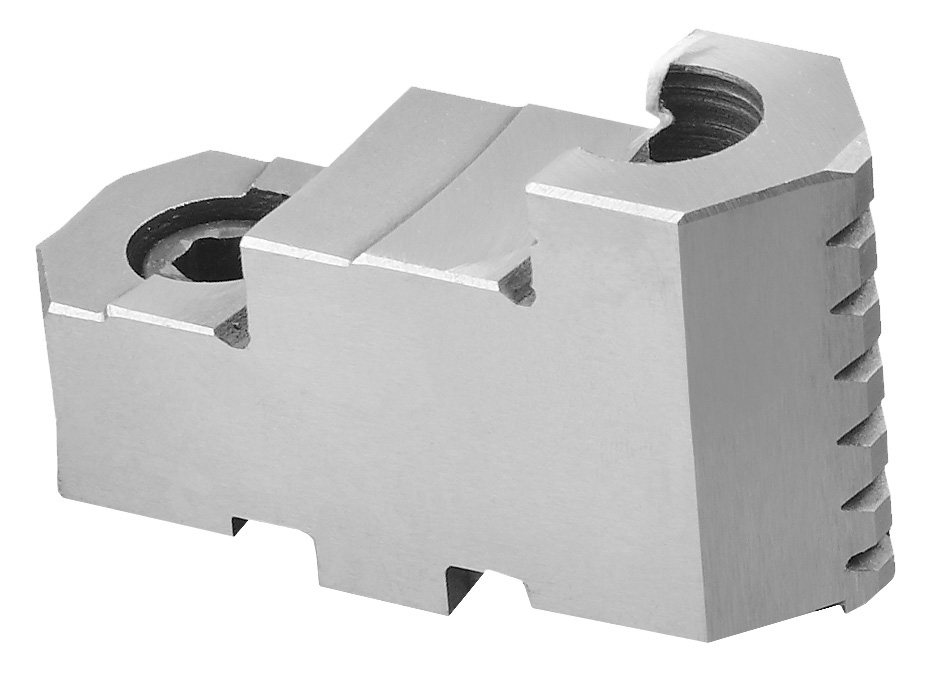

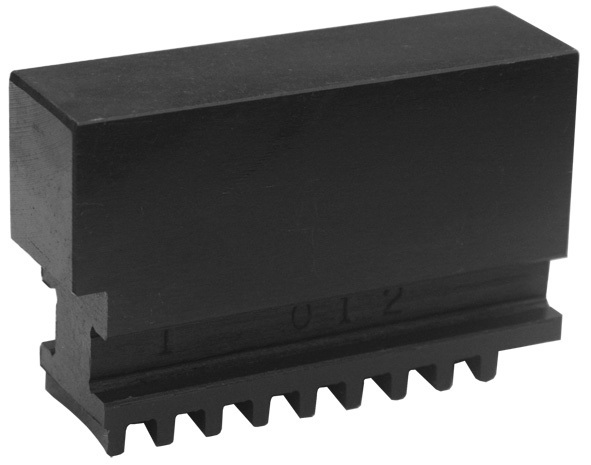

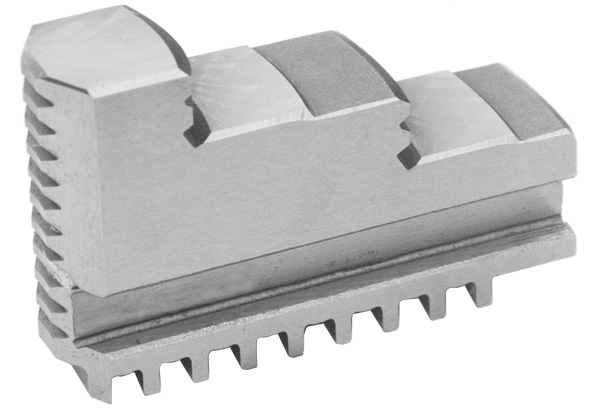

Accessories
