Four-jaw lathe chuck DIN 6350 Ø 315 mm
€1,189.87*
Available, delivery time: 1-3 workdays
Product information "Four-jaw lathe chuck DIN 6350 Ø 315 mm"
Four-jaw lathe chuck DIN 6350
- centre mount according to DIN 6350, one-piece jaws
- suitable for all types of lathes and different kinds of milling,
drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
and case hardened
- incl. 1 set each of solid jaws internally / externally stepped,
wrench, fixing screws
| DIN: | 6350 |
|---|---|
| Jaws: | one-piece jaws |
| Make: | Zentra |
| Material: | Steel |
| Type: | 4-jaw lathe chucks |
| Ø : | 315 mm |

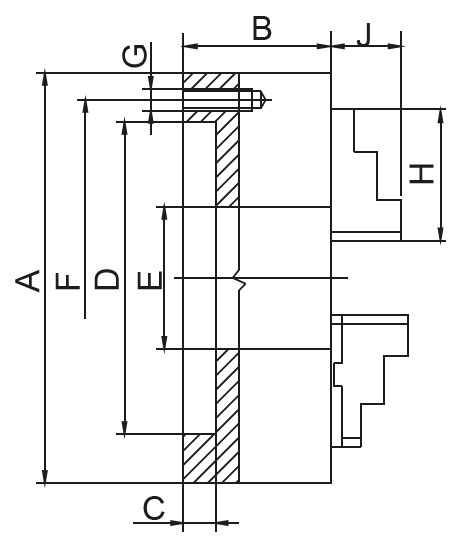

Technical Data
| A (Ø) mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
H mm |
J mm |
RPM MAX min -1 |
kg |
| 100 | 50 | 3 | 70 | 20 | 83 | 3xM8 | 42 | 17 | 5200 | 2,8 |
| 125 | 59,5 | 4 | 95 | 35,5 | 108 | 3xM8 | 51 | 20 | 4800 | 5 |
| 160 | 68 | 4 | 125 | 42 | 140 | 6xM10 | 70 | 32 | 4500 | 10 |
| 200 | 78 | 4 | 160 | 55 | 176 | 6xM10 | 85 | 29 | 4000 | 17,5 |
| 250 | 89 | 5 | 200 | 76 | 224 | 6xM12 | 105 | 34 | 2500 | 29 |
| 315 | 96,2 | 5 | 260 | 103 | 286 | 6xM16 | 125 | 43 | 2800 | 50 |
| 400 | 108 | 5 | 330 | 136 | 362 | 6xM16 | 145 | 55 | 2000 | 85 |
| 500 | 119 | 5 | 420 | 190 | 458 | 6xM16 | 180 | 60 | 1200 | 145 |
| Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben / Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws |
||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
