Three-jaw lathe chuck DIN 55026 Ø 500 mm, Taper 11
Product number:
ZE-8356-511
Customs tariff number
8466 2091
European Article Number
4049794079218
Weight
165 kg
Stock:
0
Related links:
Request Item
Product information "Three-jaw lathe chuck DIN 55026 Ø 500 mm, Taper 11"
Three-jaw lathe chuck DIN 55026 Ø 500 mm
- according to DIN 55026, one-piece jaws
- suitable for all types of lathes and different kinds of milling,
drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
and case hardened
- incl. 1 set each of solid jaws internally / externally stepped,
wrench, fixing bolts
DIN: | 55026 |
---|---|
Jaws: | one-piece jaws |
Make: | Zentra |
Material: | Steel |
Taper: | 11 |
Type: | 3-jaw lathe chucks |
Ø : | 500 mm |
Technical Data

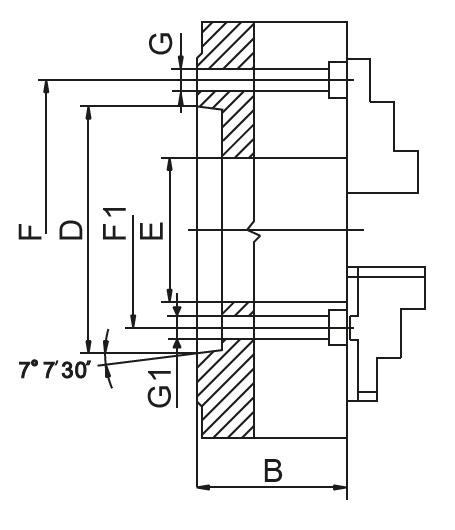

Ø mm | KK / Taper | Typ / Type | B mm | D mm | E mm | F mm | F1 mm | G mm | G1 mm | RPM MAX min -1 | kg |
160 | 5 | A1 | 68 | 82,6 | 42 | – | 62 | – | M10 | 4500 | 10 |
200 | 5 | A1 | 78 | 82,6 | 42 | – | 62 | – | M10 | 4000 | 19 |
200 | 6 | A1 | 78 | 106,4 | 55 | – | 82 | – | M12 | 4000 | 19 |
250 | 5 | A2 | 89 | 82,6 | 76 | 104,8 | – | M10 | – | 3500 | 32 |
250 | 6 | A1 | 89 | 106,4 | 55 | – | 82 | – | M12 | 3500 | 32 |
250 | 8 | A1 | 89 | 139,7 | 76 | – | 111 | – | M16 | 3500 | 32 |
315 | 6 | A2 | 96,2 | 106,4 | 103 | 133,4 | – | M12 | – | 2800 | 55 |
315 | 8 | A1 | 96,2 | 139,7 | 80 | – | 111 | – | M16 | 2800 | 55 |
400 | 8 | A2 | 108 | 139,7 | 136 | 171,4 | – | M16 | – | 2000 | 92 |
400 | 11 | A1 | 108 | 196,9 | 130 | – | 165 | – | M20 | 2000 | 92 |
500 | 11 | A2 | 119 | 196,9 | 190 | 235 | – | M20 | – | 1200 | 160 |
Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben / Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws | |||||||||||
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
