Three-jaw lathe chuck DIN 55026 Ø 200 mm, Taper 5

Product information "Three-jaw lathe chuck DIN 55026 Ø 200 mm, Taper 5"

Three-jaw lathe chuck DIN 55026 Ø 200 mm

- according to DIN 55026, one-piece jaws
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of solid jaws internally / externally stepped,
  wrench, fixing bolts

DIN: 55026
Jaws: one-piece jaws
Make: Zentra
Material: Steel
Taper: 5
Type: 3-jaw lathe chucks
Ø : 200 mm

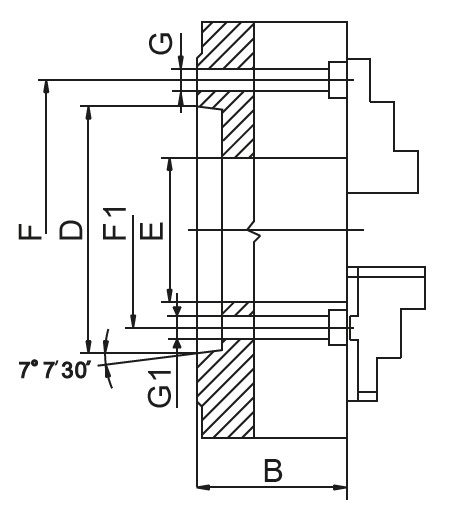

Technical Data

Ø
mm
KK /
Taper
Typ  /
Type
B
mm
D
mm
E
mm
F
mm
F1
mm
G
mm
G1
mm
RPM MAX
min -1
kg
160 5 A1 68 82,6 42 62 M10 4500 10
200 5 A1 78 82,6 42 62 M10 4000 19
200 6 A1 78 106,4 55 82 M12 4000 19
250 5 A2 89 82,6 76 104,8 M10 3500 32
250 6 A1 89 106,4 55 82 M12 3500 32
250 8 A1 89 139,7 76 111 M16 3500 32
315 6 A2 96,2 106,4 103 133,4 M12 2800 55
315 8 A1 96,2 139,7 80 111 M16 2800 55
400 8 A2 108 139,7 136 171,4 M16 2000 92
400 11 A1 108 196,9 130 165 M20 2000 92
500 11 A2 119 196,9 190 235 M20 1200 160

Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
