Three-jaw lathe chuck DIN 55026 Ø 250 mm, Taper 6

Product information "Three-jaw lathe chuck DIN 55026 Ø 250 mm, Taper 6"

Three-jaw lathe chuck DIN 55026 Ø 250 mm

- according to DIN 55026, one-piece jaws
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of solid jaws internally / externally stepped,
  wrench, fixing bolts

DIN: 55026
Jaws: one-piece jaws
Make: Zentra
Material: Steel
Taper: 6
Type: 3-jaw lathe chucks
Ø : 250 mm

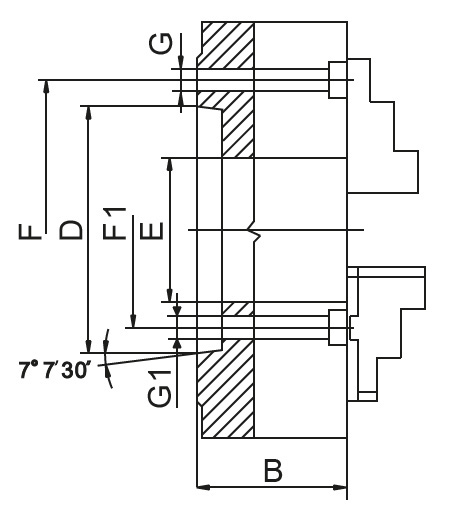

Technical Data

Ø
mm
KK /
Taper
Typ  /
Type
B
mm
D
mm
E
mm
F
mm
F1
mm
G
mm
G1
mm
RPM MAX
min -1
kg
1605A16882,64262M10450010
2005A17882,64262M10400019
2006A178106,45582M12400019
2505A28982,676104,8M10350032
2506A189106,45582M12350032
2508A189139,776111M16350032
3156A296,2106,4103133,4M12280055
3158A196,2139,780111M16280055
4008A2108139,7136171,4M16200092
40011A1108196,9130165M20200092
50011A2119196,9190235M201200160

Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
