Three-jaw lathe chuck DIN 55027 Ø 250 mm, Taper 8

Product information "Three-jaw lathe chuck DIN 55027 Ø 250 mm, Taper 8"

Three-jaw lathe chuck DIN 55027 Ø 250 mm

- according to DIN 55027, one-piece jaws
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of solid jaws internally / externally stepped,
  wrench, fixing bolts

DIN: 55027
Jaws: one-piece jaws
Make: Zentra
Material: Steel
Taper: 8
Type: 3-jaw lathe chucks
Ø : 250 mm

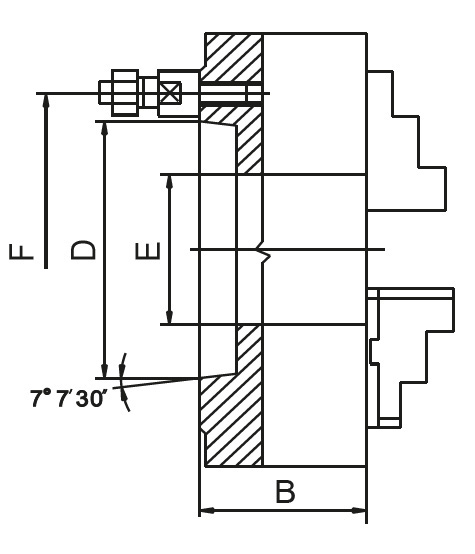

Technical Data

Ø
mm
KK /
Taper
B
mm
D
mm
E
mm
F
mm
RPM MAX
min -1
kg
125359,55435,57548005
125459,563,535,58548005
16046863,5428545009
16056882,642104,845009
20047863,55585400019
20057882,655104,8400019
200678106,455133,4400019
250689106,476133,4350032
250889139,776171,4350032
315696,2106,4103133,4280051
315896,2139,7103171,4280051
31511117,7196,9103235280051
4008108139,7136171,42000101
40011108196,91362352000101

Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsbolzen /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing bolts

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
