Three-jaw lathe chuck DIN 55027 Ø 315 mm, Taper 8
€1,210.18*
Available, delivery time: 1-3 workdays
Product information "Three-jaw lathe chuck DIN 55027 Ø 315 mm, Taper 8"
Three-jaw lathe chuck DIN 55027 Ø 315 mm
- according to DIN 55027, two-piece jaws
- suitable for all types of lathes and different kinds of milling,
drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
and case hardened

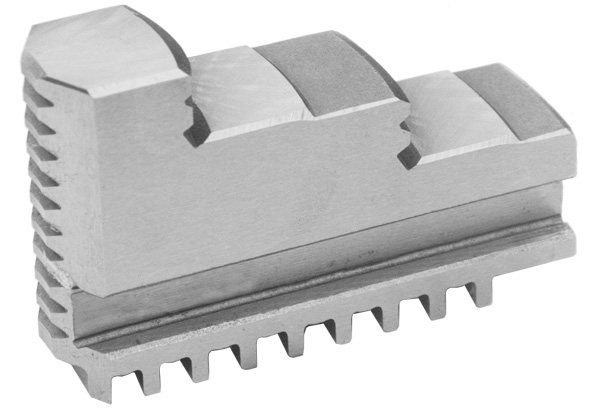

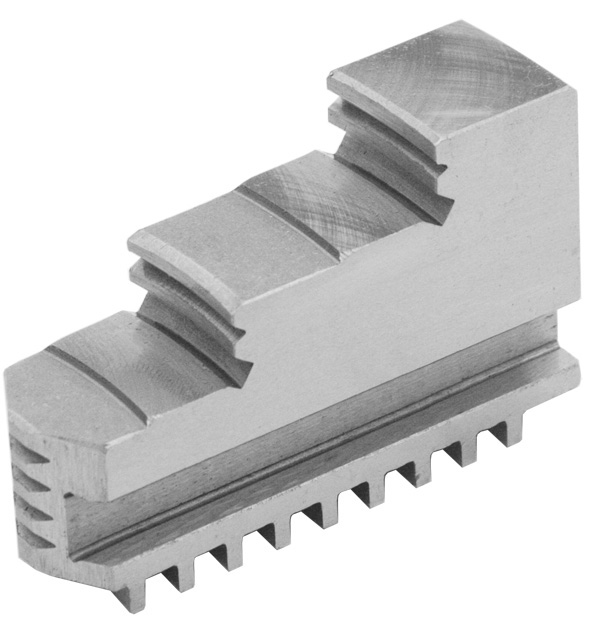

- incl. 1 set each of hardened base jaws and reversible top jaws,
wrench, fixing bolts
| DIN: | 55027 |
|---|---|
| Jaws: | two-piece jaws |
| Make: | Zentra |
| Material: | Steel |
| Taper: | 8 |
| Type: | 3-jaw lathe chucks |
| Ø : | 315 mm |

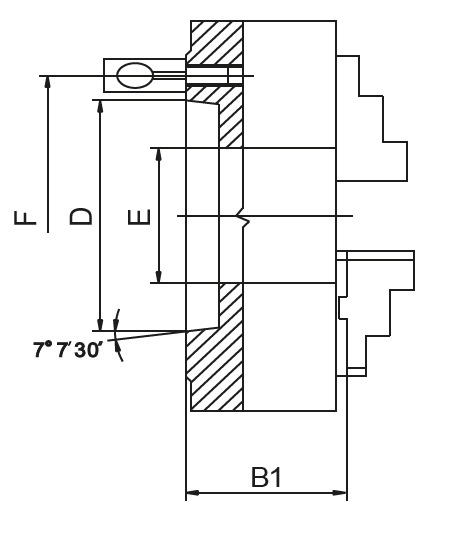

Technical Data
| Ø mm | KK / Taper | B1 mm | D mm | E mm | F mm | RPM MAX min -1 | kg |
| 125 | 3 | 64,8 | 54 | 35,5 | 75 | 4800 | 5 |
| 125 | 4 | 64,8 | 63,5 | 35,5 | 85 | 4800 | 5 |
| 160 | 4 | 72,8 | 63,5 | 42 | 85 | 4500 | 9 |
| 160 | 5 | 72,8 | 82,6 | 42 | 104,8 | 4500 | 9 |
| 200 | 5 | 82,8 | 82,6 | 55 | 104,8 | 4000 | 19 |
| 200 | 6 | 82,8 | 106,4 | 55 | 133,4 | 4000 | 19 |
| 250 | 6 | 92,8 | 106,4 | 76 | 133,4 | 3500 | 32 |
| 250 | 8 | 92,8 | 139,7 | 76 | 171,4 | 3500 | 32 |
| 315 | 6 | 101,3 | 106,4 | 103 | 133,4 | 2800 | 51 |
| 315 | 8 | 101,3 | 139,7 | 103 | 171,4 | 2800 | 51 |
| 400 | 8 | 116,8 | 139,7 | 136 | 171,4 | 2000 | 101 |
| 400 | 11 | 116,8 | 196,9 | 136 | 235 | 2000 | 101 |
| Inkl. je 1 Satz gehärteter Grund- und Umkehraufsatzbacken, Spannschlüssel, Befestigungsbolzen / Incl. 1 set each of hardened base jaws and reversible top jaws, wrench, fixing bolts | |||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved | |||||||
