Three-jaw lathe chuck DIN 6350 Ø 400 mm
€964.15*
Available, delivery time: 1-3 workdays
Product information "Three-jaw lathe chuck DIN 6350 Ø 400 mm"
Three-jaw lathe chuck DIN 6350
- centre mount, one-piece jaws
- suitable for all types of lathes and different kinds of milling,
drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
high concentricity
- chuck body made from cast iron
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
and case hardened
- incl. 1 set each of solid jaws internally / externally stepped,
wrench, fixing screws
| DIN: | 6350 |
|---|---|
| Jaws: | one-piece jaws |
| Make: | Zentra |
| Material: | Cast iron |
| Type: | 3-jaw lathe chucks |
| Ø : | 400 mm |

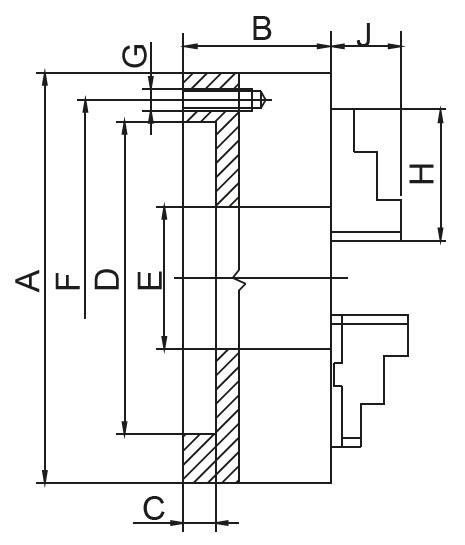

Technical Data
| A (Ø) mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | J mm | RPM MAX min -1 | kg |
| 80 | 44 | 3 | 56 | 16 | 67 | 3xM6 | 32 | 13 | 4000 | 1,5 |
| 100 | 50 | 3 | 70 | 20 | 83 | 3xM8 | 42 | 17 | 3500 | 2,8 |
| 125 | 56 | 4 | 95 | 32 | 108 | 3xM8 | 51 | 20 | 3200 | 5 |
| 160 | 64 | 4 | 125 | 42 | 140 | 6xM10 | 70 | 32 | 3000 | 10 |
| 200 | 75 | 4 | 160 | 55 | 176 | 6xM10 | 85 | 29 | 2500 | 16,6 |
| 250 | 85 | 5 | 200 | 76 | 224 | 6xM12 | 105 | 34 | 2000 | 29 |
| 315 | 94 | 5 | 260 | 103 | 286 | 6xM16 | 125 | 43 | 1500 | 50 |
| 400 | 105 | 5 | 330 | 136 | 362 | 6xM16 | 145 | 55 | 1000 | 85 |
| 500 | 120 | 5 | 420 | 190 | 458 | 6xM16 | 180 | 60 | 700 | 145 |
| 630 | 135 | 7 | 545 | 252 | 586 | 6xM16 | 225 | 70 | 500 | 250 |
| 800 | 159 | 20 | 450 | 320 | 368,3 | – | 225 | 70 | 300 | 402 |
| Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben / Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws | ||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved | ||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
