Three-jaw lathe chuck, fine adjustment Ø 125 mm
€394.63*
Available, delivery time: 1-3 workdays
Product information "Three-jaw lathe chuck, fine adjustment Ø 125 mm"
Three-jaw lathe chuck Ø 125 mm, one-piece jaws
- lathe chucks with radial fine adjustment provides
high concentricity, suitable for admission from the front
- adjusting accuracy within 0,005 mm
- repeatibility 0,015 mm
- suitable for all types of lathes and different kinds of milling,
drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
and case hardened
- incl. 1 set each of solid jaws inernally / externally stepped,
wrench, fixing screws
| Jaws: | one-piece jaws |
|---|---|
| Make: | Zentra |
| Material: | Steel |
| Type: | 3-jaw lathe chucks |
| Ø : | 125 mm |

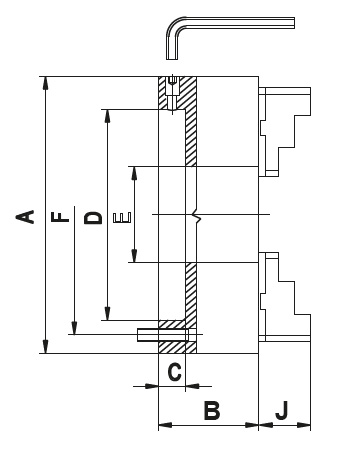

Technical Data
| A (Ø) mm |
C mm |
D mm |
E mm |
F mm |
B mm |
J mm |
RPM MAX min -1 |
| 125 | 15 | 55 | 35,5 | 108 | 71,5 | 20 | 3800 |
| 160 | 18 | 86 | 42 | 140 | 68 | 32 | 3500 |
| 200 | 20 | 110 | 55 | 176 | 78 | 29 | 3100 |
| 250 | 20 | 145 | 76 | 224 | 89 | 34 | 2700 |
| 315 | 20 | 180 | 103 | 286 | 96,2 | 43 | 2200 |
| 400 | 22 | 299,2 | 136 | 171,5 | 123 | 55 | 1800 |
| Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben / Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws |
|||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
