Three-jaw chuck with large through-hole Ø 400 mm
Product number:
ZE-3595-400
Customs tariff number
8466 2091
European Article Number
4049794042601
Weight
74 kg
Stock:
0
Related links:
Request Item
Product information "Three-jaw chuck with large through-hole Ø 400 mm"
Three-jaw chuck with large through-hole
- centre mount, two-piece jaws
- large through-hole chucks are designed for
pipe machining or welding/cut off operations
- they can also be used on lathes, rotary tables and
welding devices
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
and case hardened
- incl. 1 set each of hardened base jaws and reversible top jaws,
wrench, fixing screws
| DIN: | centre mount |
|---|---|
| Jaws: | two-piece jaws |
| Make: | Zentra |
| Material: | Steel |
| Type: | 3-jaw lathe chucks |
| Ø : | 400 mm |
Technical Data

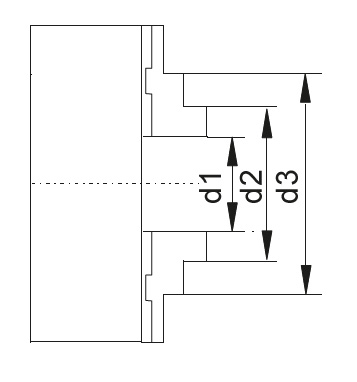

| Spannbereich / Clamping range | ||||||
| Ø mm |
d1 mm | d2 mm | d3 mm | |||
| Min. | Max. | Min. | Max. | Min. | Max. | |
| 400 | 130 | 270 | 230 | 350 | 300 | 400 |
| 508 | 250 | 380 | 330 | 450 | 385 | 500 |
| 660 | 376 | 470 | 455 | 575 | 515 | 635 |
| 800 | 260 | 566 | 360 | 750 | 420 | 800 |

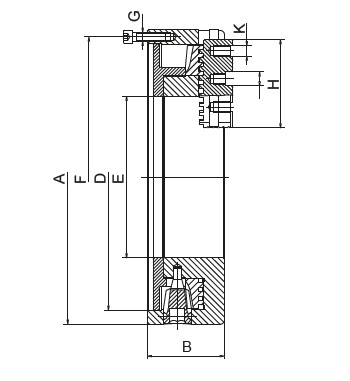

| A (Ø) mm |
H mm |
B mm |
K mm |
D mm |
E mm |
F mm |
G mm |
RPM MAX min -1 |
| 400 | 120 | 105 | 5/8"-11 | 362 | 220 | 381 | M12 x 40 | 650 |
| 508 | 120 | 120 | 3/4"-10 | 462 | 320 | 481,5 | M16 x 40 | 460 |
| 660 | 127 | 135 | 3/4"-10 | 580 | 406 | 620 | M16 x 40 | 325 |
| 800 | 225 | 151 | 3/4"-10 | 710 | 410 | 460 | M24 x 160 | 260 |
| Inkl. je 1 Satz gehärteter Grund- und Umkehraufsatzbacken, Spannschlüssel, Befestigungsschrauben / Incl. 1 set each of hardened base jaws and reversible top jaws, wrench, fixing screws |
||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||
