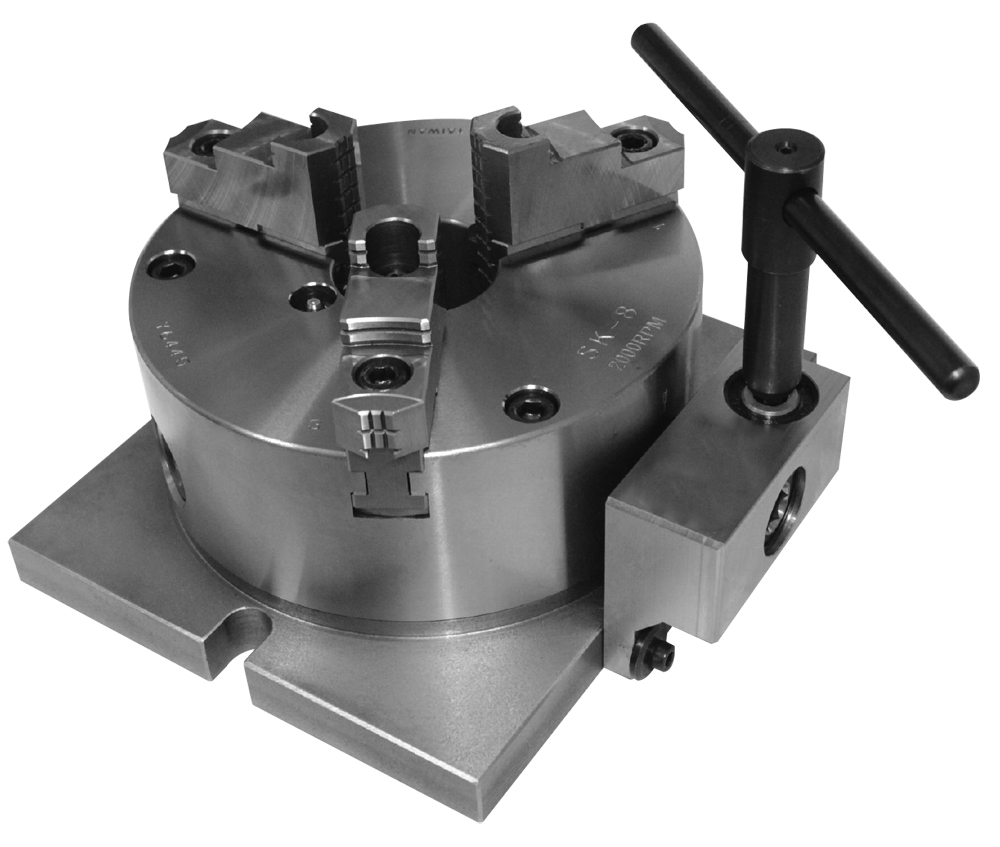

Three-jaw lathe chuck with angle drive, type 300
€2,174.11*
€2,587.19 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-SDF3WT-300
Customs tariff number
8466 2091
European Article Number
4049794666760
Weight
47 kg
Stock:
1
Related links:
Request Item
Product information "Three-jaw lathe chuck with angle drive, type 300"

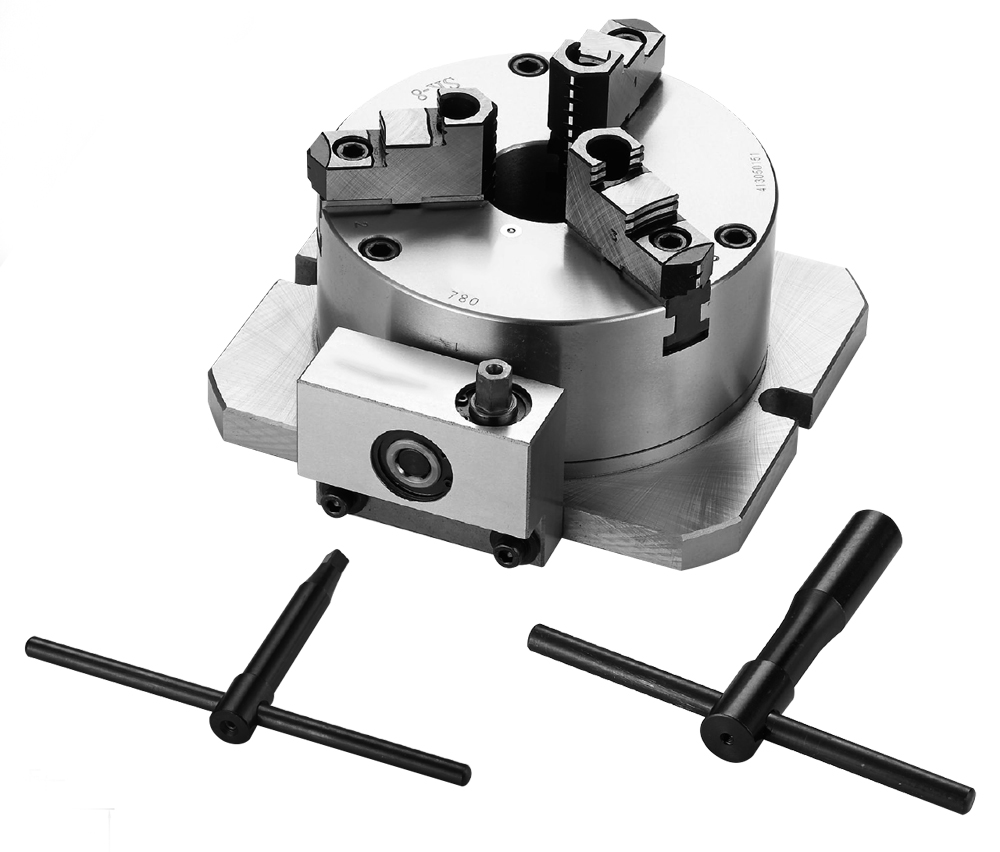

Three-jaw lathe chuck type 300 with angle drive
- clamping range: 15 - 300 mm
- angle drive with dual operation
- extra thin chuck design increases machining space
- may be used with hard or soft jaws
/ Incl. four-jaw lathe chuck available upon request.
| Make: | Zentra |
|---|---|
| Type: | 3-jaw lathe chucks |

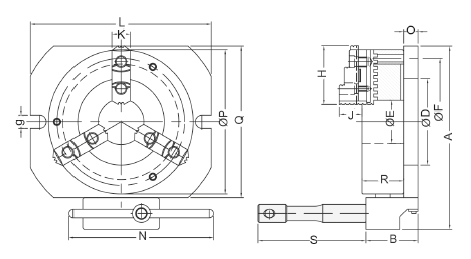

Technical Data
| Typ / Type |
A mm |
B mm |
D mm |
F mm |
E mm |
O mm |
G mm |
H mm |
S mm |
| 150 | 219 | 83 | 90 | 147 | 45 | 20 | 3-M10 | 72 | 150 |
| 200 | 254 | 83 | 120 | 176 | 58 | 20 | 3-M10 | 82 | 150 |
| 250 | 327 | 83 | 190 | 250 | 87 | 24 | 3-M12 | 100 | 150 |
| 300 | 364 | 83 | 220 | 285 | 105 | 24 | 3-M12 | 114 | 150 |
| K mm |
J mm |
L mm |
g mm |
N mm |
P mm |
Q mm |
R mm |
Spannbereich / Clamping range mm |
kg |
| 26 | 39 | 215 | 18 | 200 | 165 | 175 | 67 | 8 - 160 | 18 |
| 28 | 43 | 250 | 18 | 200 | 200 | 200 | 76,5 | 8 - 180 | 25 |
| 35 | 50 | 324 | 18 | 200 | 273 | 283 | 87 | 12 - 260 | 49 |
| 40 | 56 | 360 | 18 | 200 | 310 | 320 | 96 | 15 - 300 | 64 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
