Hard master jaws for 4-jaw scroll chucks Ø 630 mm
Product number:
398539681400
Customs tariff number
84662091
European Article Number
Weight
13,2 kg
Stock:
0
Related links:
Request Item
Product information "Hard master jaws for 4-jaw scroll chucks Ø 630 mm"
Hard master jaws
for Bison 4-jaw scroll chucks Ø 630 mm
- material: steel
- 4 pieces/set
Jaws: | Hard base jaws |
---|---|
Jaws for lathe chucks type: | 4-jaw lathe chucks |
Jaws for Ø: | 630 mm |
Make: | Bison |
Technical Data
Futtergröße / Chuck size |

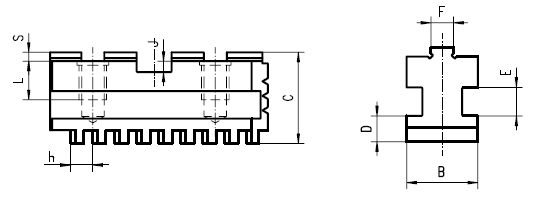

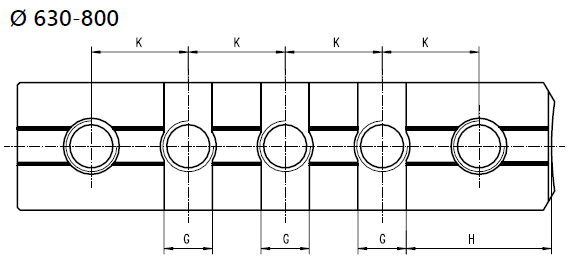

A | B | C | D | E | F | G | H | J | K | L | M* | S | h | kg pro Stück / kg per piece |
125 | 54 | 20 | 28,0 | 8,0 | 8 | 7,94 | 12,69 | 22,6 | 4,0 | 16,00 | 13,5 | M8 | 3,2 | 7,0 | 0,1 |
160 | 65 | 20 | 29,0 | 8,0 | 8 | 7,94 | 12,69 | 28,6 | 4,0 | 19,05 | 14,0 | M10 | 3,2 | 8,0 | 0,2 |
200 | 79 | 25 | 33,0 | 9,0 | 10 | 7,94 | 12,69 | 34,9 | 4,0 | 22,25 | 14,0 | M10 | 3,2 | 8,0 | 0,3 |
250 | 92 | 28 | 36,0 | 11,0 | 12 | 12,70 | 19,04 | 39,7 | 4,0 | 27,00 | 16,0 | M12 | 3,2 | 9,0 | 0,5 |
315 | 110 | 32 | 40,0 | 12,7 | 12 | 12,70 | 19,04 | 47,6 | 4,0 | 31,75 | 16,0 | M12 | 3,2 | 10,0 | 0,8 |
400 | 130 | 36 | 49,0 | 15,0 | 14 | 12,70 | 19,04 | 57,1 | 7,2 | 38,10 | 22,0 | M16 | 3,2 | 12,0 | 1,1 |
500 | 166 | 40 | 54,0 | 16,0 | 14 | 12,70 | 19,04 | 57,1 | 7,2 | 38,10 | 32,5 | M20 | 3,2 | 14,2 | 2,2 |
630 | 210 | 50 | 54,5 | 16,0 | 14 | 12,70 | 19,04 | 57,1 | 7,2 | 38,10 | 32,5 | M20 | 3,2 | 14,2 | 3,3 |
800 | 225 | 50 | 54,5 | 16,0 | 14 | 12,70 | 19,04 | 57,1 | 7,2 | 38,10 | 32,5 | M20 | 3,2 | 14,2 | 3,4 |
* Schrauben sind im Lieferumfang enthalten / Screws are included in delivery | |||||||||||||||
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
