Soft top jaws for 6-jaw scroll chucks Ø 400 mm
Product number:
398540772000
Customs tariff number
84662091
European Article Number
Weight
13,2 kg
Stock:
0
Related links:
Request Item
Product information "Soft top jaws for 6-jaw scroll chucks Ø 400 mm"
Soft top jaws
for Bison 6-jaw scroll chucks Ø 400 mm
- material: steel
- 6 pieces/set
| Jaws: | Soft top jaws |
|---|---|
| Jaws for lathe chucks type: | 6-jaw lathe chucks |
| Jaws for Ø: | 400 mm |
| Make: | Bison |

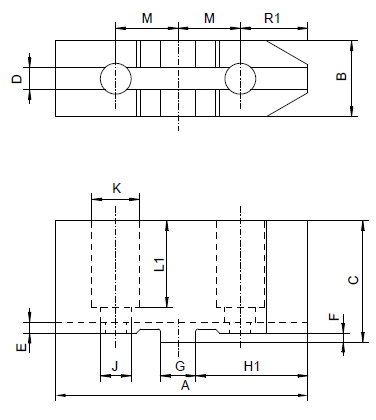

Technical Data
| Futtergröße / Chuck size |
A | B | C | D | E | F | G | H1 | J | K | L1 | M | kg pro Stück / kg per piece |
| 200 | 90 | 27,0 | 43,5 | 7,95 | 4 | 3,2 | 12,69 | 40 | 9 | 14 | 31,0 | 22,25 | 0,7 |
| 250 | 106 | 32,5 | 51,5 | 12,71 | 4 | 3,2 | 19,04 | 45 | 14 | 20 | 38,0 | 27,00 | 1,2 |
| 315 | 120 | 37,0 | 55,0 | 12,71 | 4 | 3,2 | 19,04 | 53 | 14 | 20 | 40,0 | 31,75 | 1,6 |
| 400 | 140 | 42,0 | 64,5 | 12,71 | 4 | 6,3 | 19,04 | 63 | 18 | 26 | 45,5 | 38,10 | 2,2 |
| 500 | 140 | 42,0 | 74,5 | 12,71 | 4 | 6,3 | 19,04 | 63 | 22 | 33 | 56,0 | 38,10 | 2,4 |
| 630 / 800 | 160 | 52,0 | 82,0 | 12,71 | 4 | 6,3 | 19,04 | 63 | 22 | 33 | 64,0 | 38,10 | 4,2 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
