Hard solid jaws for chuck-Ø 160 mm
€146.78*
% €154.50* (5% saved)
€174.67 incl. Vat.
Delivery time upon request
Product number:
398535030400
Customs tariff number
84662091
European Article Number
Weight
1,2 kg
Stock:
0
Related links:
Request Item
Product information "Hard solid jaws for chuck-Ø 160 mm"
Hard solid jaws, outside-inside clamping
for Bison 3-jaw scroll chucks Ø 160 mm
- material: steel
- 3 pieces/set
| Jaws: | Externally stepped solid jaws |
|---|---|
| Jaws for lathe chucks type: | 3-jaw lathe chucks |
| Jaws for Ø: | 160 mm |
| Make: | Bison |

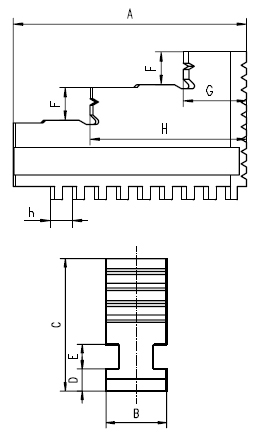

Technical Data
| Futtergröße / Chuck size |
A | B | C | D | E | F | G | H | h | kg pro Stück / kg per piece |
| 80 | 32 | 11 | 28 | 6,0 | 6 | 6 | 9,5 | 21,0 | 4,0 | 0,03 |
| 100 | 42 | 15 | 31 | 6,0 | 6 | 7 | 11,0 | 27,0 | 6,0 | 0,1 |
| 125 | 51 | 20 | 40 | 8,0 | 8 | 8 | 13,0 | 33,5 | 7,0 | 0,2 |
| 160 | 70 | 20 | 53 | 8,0 | 8 | 10 | 19,0 | 45,0 | 8,0 | 0,4 |
| 200 | 85 | 25 | 54 | 9,0 | 10 | 12 | 23,0 | 57,0 | 8,0 | 0,5 |
| 250 | 105 | 28 | 63 | 11,0 | 12 | 14 | 28,0 | 69,5 | 9,0 | 0,8 |
| 315 | 125 | 32 | 73 | 12,7 | 12 | 18 | 34,5 | 83,0 | 10,0 | 1,3 |
| 400 | 145 | 36 | 92 | 15,0 | 14 | 22 | 36,0 | 99,0 | 12,0 | 2,4 |
| 500 | 180 | 40 | 100 | 16,0 | 14 | 26 | 50,0 | 119,5 | 14,2 | 3,4 |
| 630 / 800 | 225 | 50 | 110 | 16,0 | 14 | 28 | 66,0 | 149,0 | 14,2 | 5,8 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
