Soft solid jaws for Bison Wescott Ø 200 mm
Product number:
398575190500
Customs tariff number
84662091
European Article Number
Weight
1,8 kg
Stock:
0
Related links:
Request Item
Product information "Soft solid jaws for Bison Wescott Ø 200 mm"
Soft solid jaws for Bison
3-jaw combination chucks (Wescott) Ø 200 mm
- material: steel
- 3 pieces/set
| Jaws: | Soft solid jaws |
|---|---|
| Jaws for lathe chucks type: | 3-jaw lathe chucks Wescott |
| Jaws for Ø: | 200 mm |
| Make: | Bison |

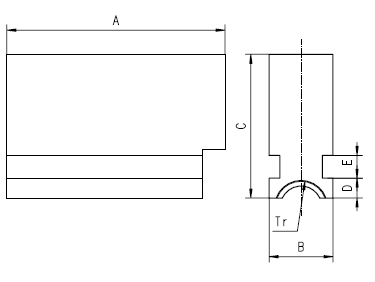

Technical Data
| Futtergröße / Chuck size |
A | B | C | D | E | G | LH Gewinde / LH Thread |
H1 | H | kg pro Stück / kg per piece |
| 200 | 85 | 25 | 58 | 11,0 | 10 | 12 | Tr 18 x 2 | 25,0 | 56,0 | 0,6 |
| 250 | 91 | 28 | 61 | 10,0 | 10 | 14 | Tr 18 x 2 | 26,5 | 60,0 | 0,8 |
| 315 | 125 | 32 | 73 | 13,5 | 12 | 18 | Tr 24 x 3 | 27,0 | 76,0 | 1,6 |
| 400 | 145 | 36 | 90 | 12,0 | 14 | 22 | Tr 24 x 3 | 35,0 | 98,2 | 1,8 |
| 500 | 180 | 40 | 100 | 15,0 | 14 | 26 | Tr 26 x 3 | 49,7 | 119,3 | 3,9 |
| 630 | 225 | 50 | 108 | 14,0 | 14 | 28 | Tr 26 x 3 | 65,0 | 148,0 | 4,5 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
