Soft solid jaws for 3-jaw scroll chucks Ø 160 mm
€86.21*
% €90.75* (5% saved)
€102.59 incl. Vat.
Delivery time upon request
Product number:
398536030200
Customs tariff number
84662091
European Article Number
Weight
1,5 kg
Stock:
0
Related links:
Request Item
Product information "Soft solid jaws for 3-jaw scroll chucks Ø 160 mm"
Soft solid jaws
for Bison 3-jaw scroll chucks Ø 160 mm
- material: steel
- 3 pieces/set
| Jaws: | Soft solid jaws |
|---|---|
| Jaws for lathe chucks type: | 3-jaw lathe chucks |
| Jaws for Ø: | 160 mm |
| Make: | Bison |

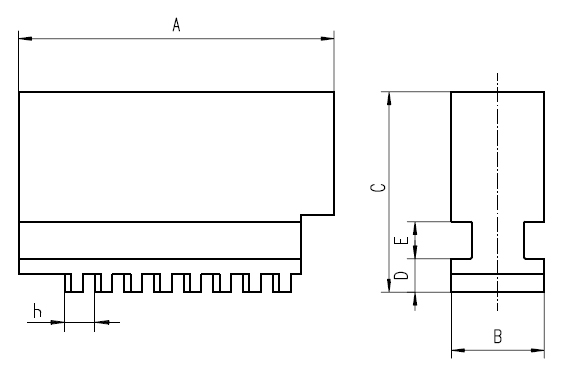

Technical Data
| Futtergröße / Chuck size |
A | B | C | D | E | h | kg pro Stück / kg per piece |
| 80 | 32 | 11 | 28 | 6,0 | 6 | 4,0 | 0,1 |
| 100 | 42 | 15 | 31 | 6,0 | 6 | 6,0 | 0,1 |
| 125 | 51 | 20 | 40 | 8,0 | 8 | 7,0 | 0,3 |
| 160 | 70 | 20 | 53 | 8,0 | 8 | 8,0 | 0,5 |
| 200 | 85 | 25 | 54 | 9,0 | 10 | 8,0 | 0,8 |
| 250 | 105 | 28 | 63 | 11,0 | 12 | 9,0 | 1,4 |
| 315 | 125 | 32 | 73 | 12,7 | 12 | 10,0 | 1,9 |
| 400 | 145 | 36 | 92 | 15,0 | 14 | 12,0 | 2,5 |
| 500 | 180 | 40 | 100 | 16,0 | 14 | 14,2 | 5,0 |
| 630 | 225 | 50 | 110 | 16,0 | 14 | 14,2 | 8,4 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||
