Soft top jaws for 3-jaw scroll chucks Ø 160 mm
€78.38*
% €82.50* (4.99% saved)
€93.27 incl. Vat.
Delivery time upon request
Product number:
398533030800
Customs tariff number
84662091
European Article Number
Weight
1,5 kg
Stock:
0
Related links:
Request Item
Product information "Soft top jaws for 3-jaw scroll chucks Ø 160 mm"
Soft top jaws
for Bison 3-jaw scroll chucks Ø 160 mm
- material: steel
- 3 pieces/set
| Jaws: | Soft top jaws |
|---|---|
| Jaws for lathe chucks type: | 3-jaw lathe chucks |
| Jaws for Ø: | 160 mm |
| Make: | Bison |

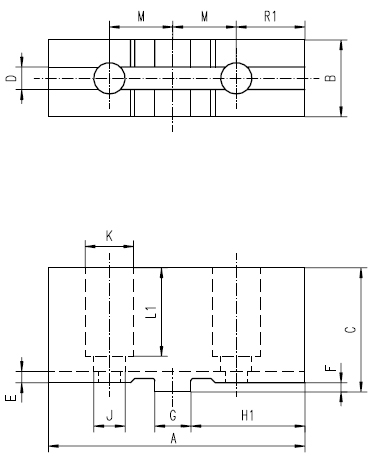

Technical Data
| Futtergröße / Chuck size |
A | B | C | D | E | F | G | H1 | J | K | L1 | M | kg pro Stück / kg per piece |
| 125 | 64 | 22,0 | 46,5 | 7,95 | 4 | 3,2 | 12,69 | 25 | 9 | 15 | 26,0 | 16,00 | 0,3 |
| 160 | 78 | 25,0 | 41,5 | 7,95 | 4 | 3,2 | 12,69 | 34 | 11 | 18 | 29,0 | 19,05 | 0,5 |
| 200 | 90 | 27,0 | 43,5 | 7,95 | 4 | 3,2 | 12,69 | 40 | 11 | 18 | 31,0 | 22,25 | 0,7 |
| 250 | 106 | 32,5 | 51,5 | 12,71 | 4 | 3,2 | 19,04 | 45 | 14 | 20 | 38,0 | 27,00 | 1,2 |
| 315 | 120 | 52,0 | 55,0 | 12,71 | 4 | 3,2 | 19,04 | 53 | 14 | 20 | 40,0 | 31,75 | 1,6 |
| 400 | 140 | 42,0 | 64,5 | 12,71 | 4 | 6,3 | 19,04 | 63 | 18 | 26 | 45,5 | 38,10 | 2,2 |
| 500 | 140 | 42,0 | 74,5 | 12,71 | 4 | 6,3 | 19,04 | 63 | 22 | 33 | 56,0 | 38,10 | 2,4 |
| 630 / 800 | 160 | 52,0 | 82,0 | 12,71 | 4 | 6,3 | 19,04 | 63 | 22 | 33 | 64,0 | 38,10 | 4,2 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
