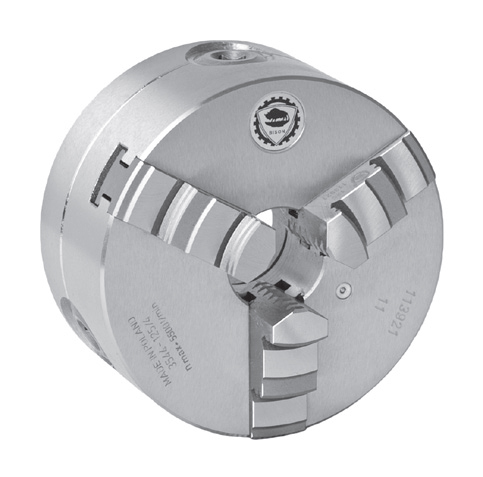

3-jaw scroll chuck Bison 3544-315-8
€1,671.53*
% €1,759.50* (5% saved)Delivery time upon request
Product information "3-jaw scroll chuck Bison 3544-315-8"
3-jaw scroll chuck Bison
- type D mounting (CAMLOCK) DIN 55029
- type 3544 Ø 315 mm, taper 8
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- solid jaws

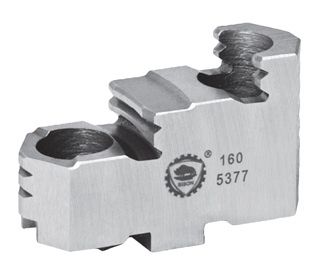

- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
and 1 wrench
| DIN: | 55029 |
|---|---|
| Jaws: | one-piece jaws |
| Make: | Bison |
| Material: | Steel |
| Taper: | 8 |
| Type: | 3-jaw lathe chucks |
| Ø : | 315 mm |

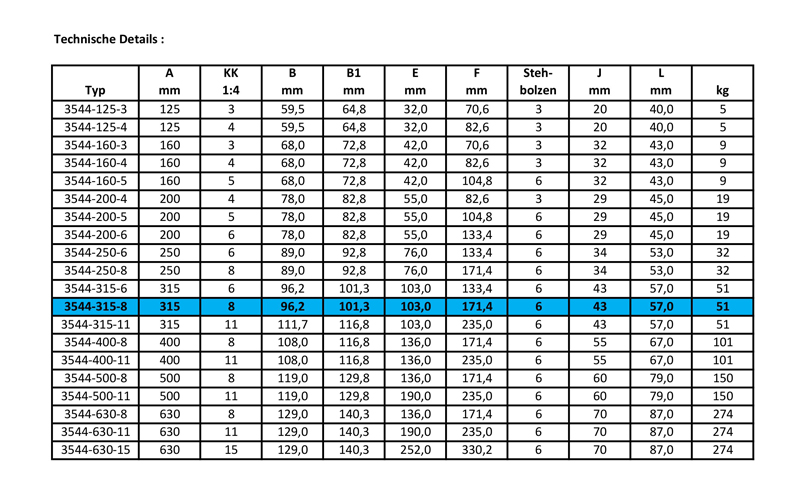

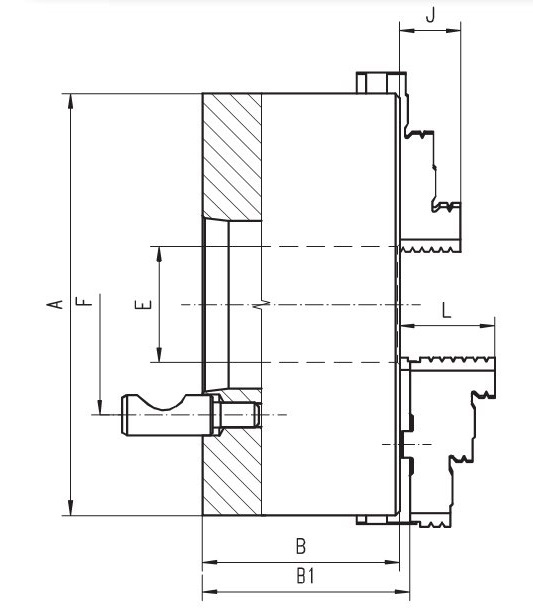

Technical Data
| A | KK 1:4 / ST 1:4 |
B | B1 | E | F | Stehbolzen / Stud bolts |
J | L | kg |
| 125 | 3 | 59,5 | 64,8 | 32 | 70,6 | 3 | 20 | 40 | 5 |
| 125 | 4 | 59,5 | 64,8 | 32 | 82,6 | 3 | 20 | 40 | 5 |
| 160 | 4 | 68,0 | 72,8 | 42 | 82,6 | 3 | 32 | 43 | 9 |
| 160 | 5 | 68,0 | 72,8 | 42 | 104,8 | 6 | 32 | 43 | 9 |
| 200 | 4 | 78,0 | 82,8 | 55 | 82,6 | 3 | 29 | 45 | 19 |
| 200 | 5 | 78,0 | 82,8 | 55 | 104,8 | 6 | 29 | 45 | 19 |
| 200 | 6 | 78,0 | 82,8 | 55 | 133,4 | 6 | 29 | 45 | 19 |
| 250 | 6 | 89,0 | 92,8 | 76 | 133,4 | 6 | 34 | 53 | 32 |
| 250 | 8 | 89,0 | 92,8 | 76 | 171,4 | 6 | 34 | 53 | 32 |
| 315 | 6 | 96,2 | 101,3 | 103 | 133,4 | 6 | 43 | 57 | 51 |
| 315 | 8 | 96,2 | 101,3 | 103 | 171,4 | 6 | 43 | 57 | 51 |
| 315 | 11 | 111,7 | 116,8 | 103 | 235,0 | 6 | 43 | 57 | 51 |
| 400 | 8 | 108,0 | 116,8 | 136 | 171,4 | 6 | 55 | 67 | 101 |
| 400 | 11 | 108,0 | 116,8 | 136 | 235,0 | 6 | 55 | 67 | 101 |
| 500 | 8 | 119,0 | 129,8 | 136 | 171,4 | 6 | 60 | 79 | 150 |
| 500 | 11 | 119,0 | 129,8 | 190 | 235,0 | 6 | 60 | 79 | 150 |
| 630 | 8 | 129,0 | 140,3 | 136 | 171,4 | 6 | 70 | 87 | 274 |
| 630 | 11 | 129,0 | 140,3 | 190 | 235,0 | 6 | 70 | 87 | 274 |
| 630 | 15 | 129,0 | 140,3 | 252 | 330,2 | 6 | 70 | 87 | 274 |
| Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel / Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench |
|||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
