Hard master jaws for 2-jaw scroll chucks Ø 160 mm
Product number:
398530710600
Customs tariff number
84662091
European Article Number
Weight
0,4 kg
Stock:
0
Related links:
Request Item
Product information "Hard master jaws for 2-jaw scroll chucks Ø 160 mm"
Hard master jaws for
Bison 2-jaw scroll chucks Ø 160 mm
- material: steel
- 2 pieces/set
| Jaws: | Hard base jaws |
|---|---|
| Jaws for lathe chucks type: | 2-jaw lathe chucks |
| Jaws for Ø: | 160 mm |
| Make: | Bison |

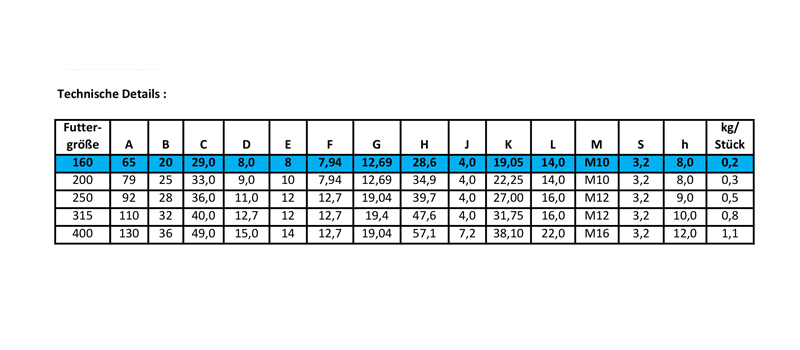

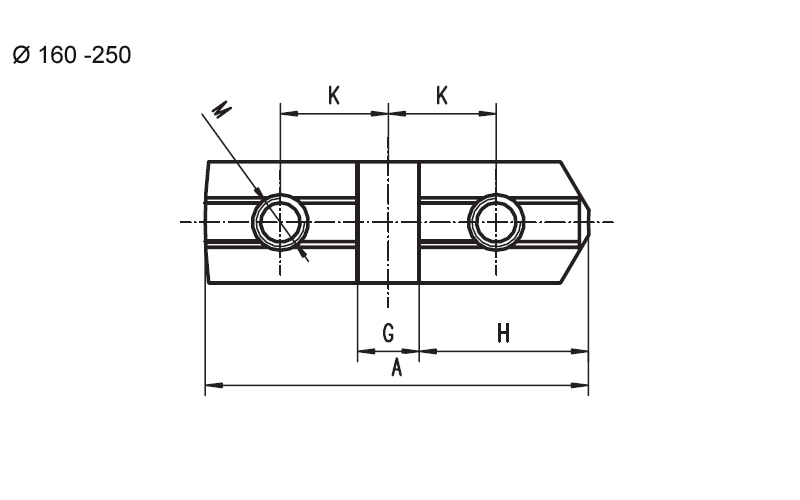

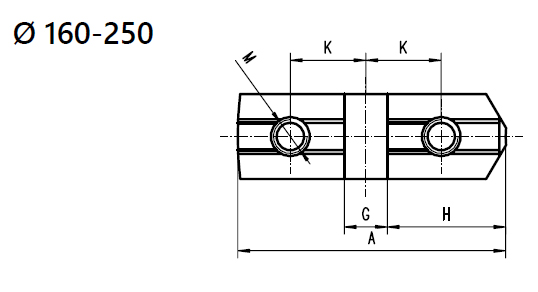

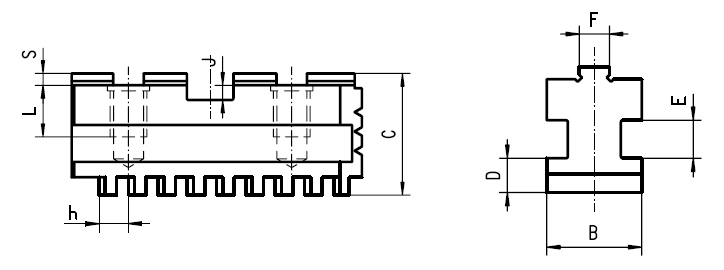

Technical Data
| Futtergröße / Chuck size |
A | B | C | D | E | F | G | H | J | K | L | M* | S | h | kg pro Stück / kg per piece |
| 160 | 65 | 20 | 29 | 8,0 | 8 | 7,94 | 12,69 | 28,6 | 4,0 | 19,05 | 14 | M10 | 3,2 | 8 | 0,2 |
| 200 | 79 | 25 | 33 | 9,0 | 10 | 7,94 | 12,69 | 34,9 | 4,0 | 22,25 | 14 | M10 | 3,2 | 8 | 0,3 |
| 250 | 92 | 28 | 36 | 11,0 | 12 | 12,70 | 19,04 | 39,7 | 4,0 | 27,00 | 16 | M12 | 3,2 | 9 | 0,5 |
| 315 | 110 | 32 | 40 | 12,7 | 12 | 12,70 | 19,04 | 47,6 | 4,0 | 31,75 | 16 | M12 | 3,2 | 10 | 0,8 |
| 400 | 130 | 36 | 49 | 15,0 | 14 | 12,70 | 19,04 | 57,1 | 7,2 | 38,10 | 22 | M16 | 3,2 | 12 | 1,1 |
| * Schrauben sind im Lieferumfang enthalten / Screws are included in delivery | |||||||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||||||
