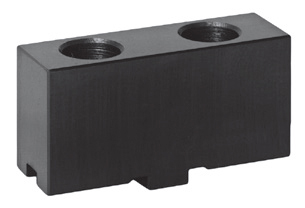

Soft top jaws for 2-jaw scroll chucks Ø 250 mm
Product number:
398530550100
Customs tariff number
84662091
European Article Number
Weight
2,4 kg
Stock:
0
Related links:
Request Item
Product information "Soft top jaws for 2-jaw scroll chucks Ø 250 mm"
Soft top jaws for
Bison 2-jaw scroll chucks Ø 250 mm
- material: steel
- 2 pieces/set
| Jaws: | Soft top jaws |
|---|---|
| Jaws for lathe chucks type: | 2-jaw lathe chucks |
| Jaws for Ø: | 250 mm |
| Make: | Bison |

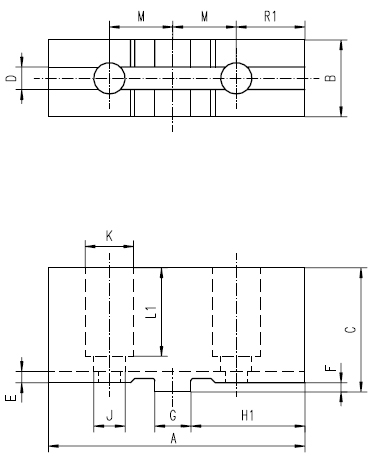

Technical Data
| Futtergröße / Chuck size |
A | B | C | D | E | F | G | H1 | J | K | L1 | M | kg pro Stück / kg per piece |
| 160 | 78 | 40 | 41,5 | 7,95 | 4 | 3,2 | 12,69 | 34 | 11 | 18 | 29,0 | 19,05 | 0,5 |
| 200 | 90 | 40 | 41,5 | 7,95 | 4 | 3,2 | 12,69 | 40 | 11 | 14 | 31,0 | 22,25 | 0,7 |
| 250 | 106 | 47 | 51,5 | 12,71 | 4 | 3,2 | 19,04 | 45 | 14 | 20 | 38,0 | 27,00 | 1,2 |
| 315 | 120 | 52 | 55,0 | 12,71 | 4 | 3,2 | 19,04 | 53 | 14 | 20 | 40,0 | 31,75 | 1,6 |
| 400 | 140 | 52 | 64,5 | 12,71 | 4 | 6,3 | 19,04 | 63 | 18 | 26 | 45,5 | 38,10 | 2,2 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
