Table vice BASIC 150 with swivel base
Product number:
BAS-SWBS-150
Customs tariff number
8205 7000
European Article Number
4049794079881
Weight
14 kg
Stock:
0
Related links:
Request Item
Product information "Table vice BASIC 150 with swivel base"

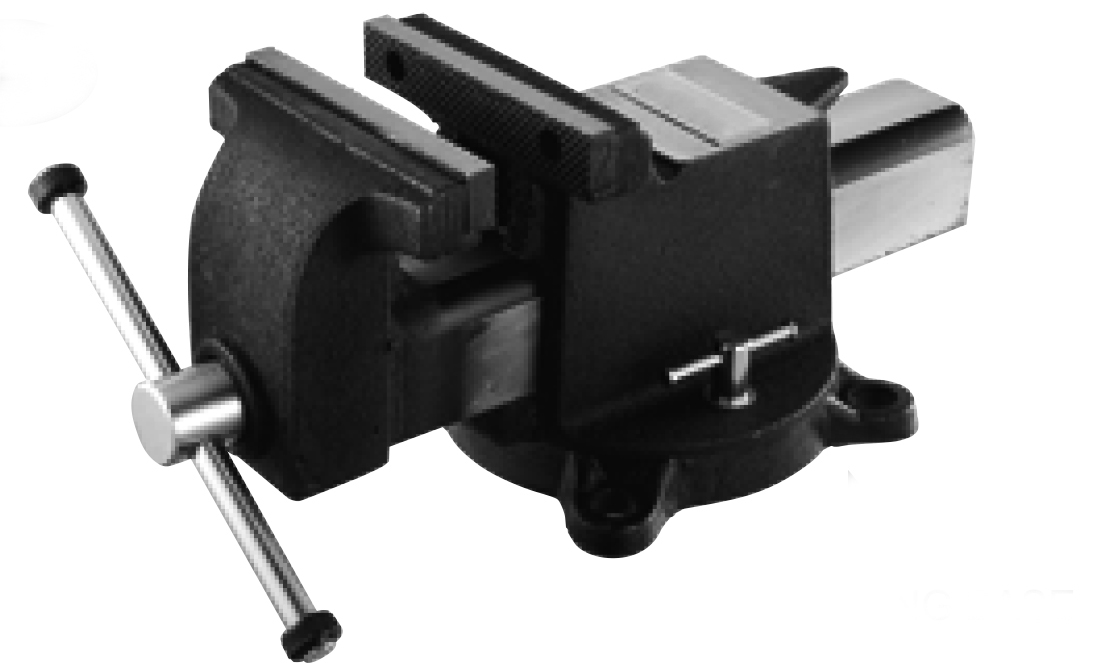

Table vice type BASIC 150
- jaw width 154 mm
- swivel base, 360° rotatable
- with pipe jaws
Clamping capacity: | 150 mm |
---|---|
Jaw width: | 150 mm |
Make: | Basic |
Type: | mechanically |
Type: | Table vices |

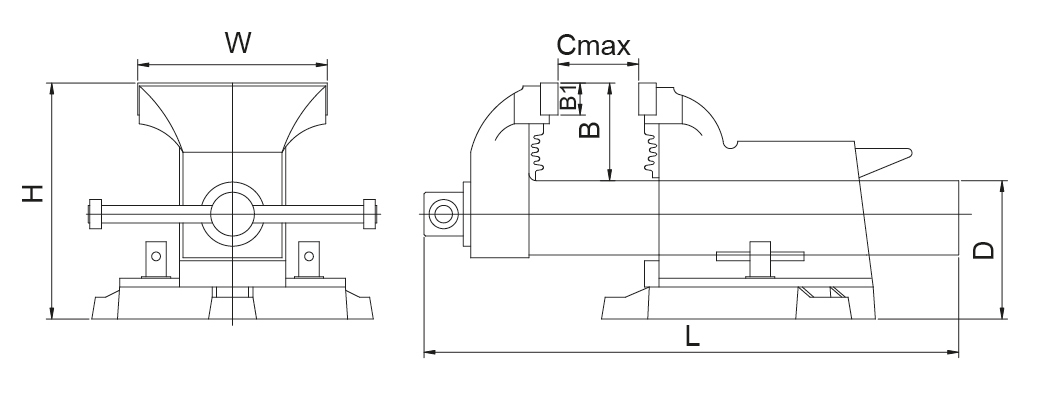

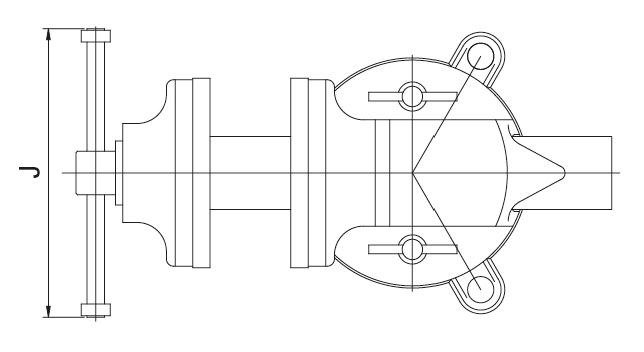

Technical Data
Typ / Type |
W mm |
Cmax mm |
H mm |
B mm |
B1 mm |
L mm |
J mm |
Spannkraft / Clamping force daN |
kg |
100 | 104 | 100 | 148 | 61 | 18 | 310 | 178 | 1760 | 7 |
125 | 127 | 125 | 165 | 68 | 22 | 370 | 198 | 2250 | 11 |
150 | 154 | 150 | 183 | 78 | 22 | 420 | 228 | 2740 | 14 |
200 | 205 | 200 | 202 | 87 | 22 | 500 | 238 | 2940 | 18 |
250 | 253 | 250 | 263 | 100 | 22 | 570 | 263 | 2940 | 24 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
