Table vice BASIC 200 with swivel base

Product information "Table vice BASIC 200 with swivel base"

Table vice type BASIC 200
- jaw width 205 mm

- swivel base, 360° rotatable
- with pipe jaws

Clamping capacity: 200 mm
Jaw width: 200 mm
Make: Basic
Type: mechanically
Type: Table vices

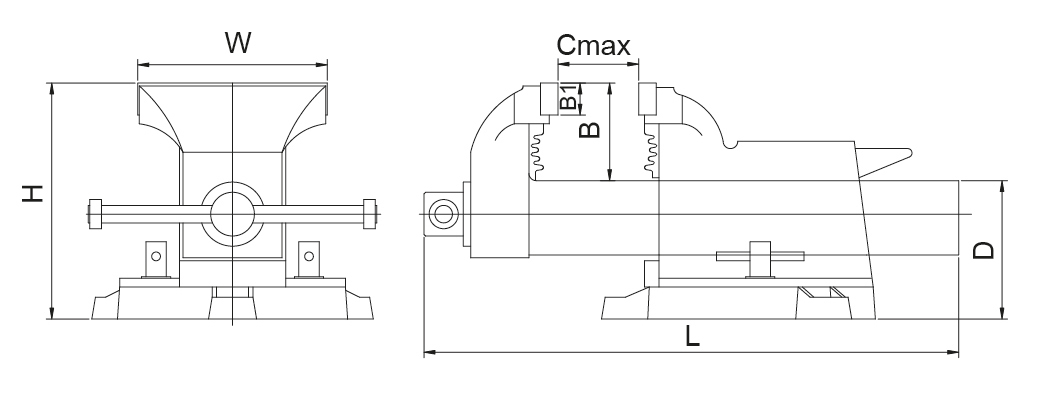

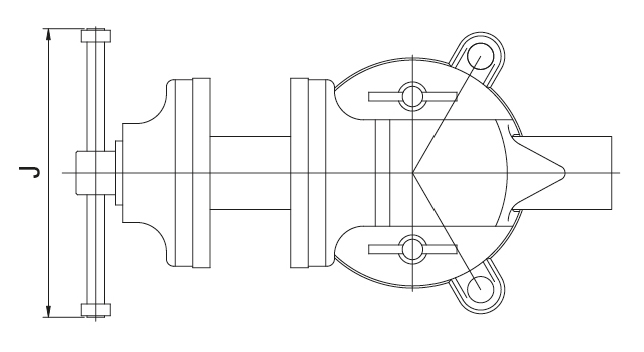

Technical Data

Typ /
Type
W
mm
Cmax
mm
H
mm
B
mm
B1
mm
L
mm
J
mm
Spannkraft /
Clamping force daN
kg
100 104 100 148 61 18 310 178 1760 7
125 127 125 165 68 22 370 198 2250 11
150 154 150 183 78 22 420 228 2740 14
200 205 200 202 87 22 500 238 2940 18
250 253 250 263 100 22 570 263 2940 24

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.
