Round permanent magnetic chuck Ø 200 mm
€678.24*
€807.11 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
14-PMPRD18-200
Customs tariff number
8466 3000
European Article Number
4049794663967
Weight
13 kg
Stock:
3
Related links:
Request Item
Product information "Round permanent magnetic chuck Ø 200 mm"
Round permanent magnetic chuck 200 mm
- for turning and grinding machines,
diving heads and rotary tables
- generation of magnetic force by
permanent magnetics
- on/off-operation by wrench
- holding force up to 100 N/cm²

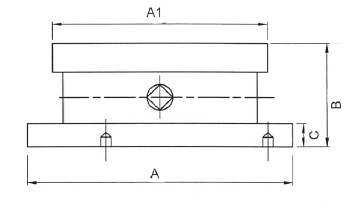

Technical Data
| A1 mm |
D mm |
C mm |
A mm |
P mm |
B mm |
kg |
| 150 | 101 | 18 | 200 | 9 (2+7) | 78 | 9 |
| 200 | 137 | 18 | 200 | 9 (2+7) | 78 | 13 |
| 250 | 191 | 18 | 250 | 9 (2+7) | 78 | 20 |
| 300 | 227 | 18 | 305 | 9 (2+7) | 78 | 31 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
