Three point internal micrometer 8-10 mm analogue DIN 863
€222.00*
€264.18 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
312.131
Customs tariff number
9017 3000
European Article Number
4054469119441
Weight
0,6 kg
Stock:
17
Related links:
Request Item
Product information "Three point internal micrometer 8-10 mm analogue DIN 863"

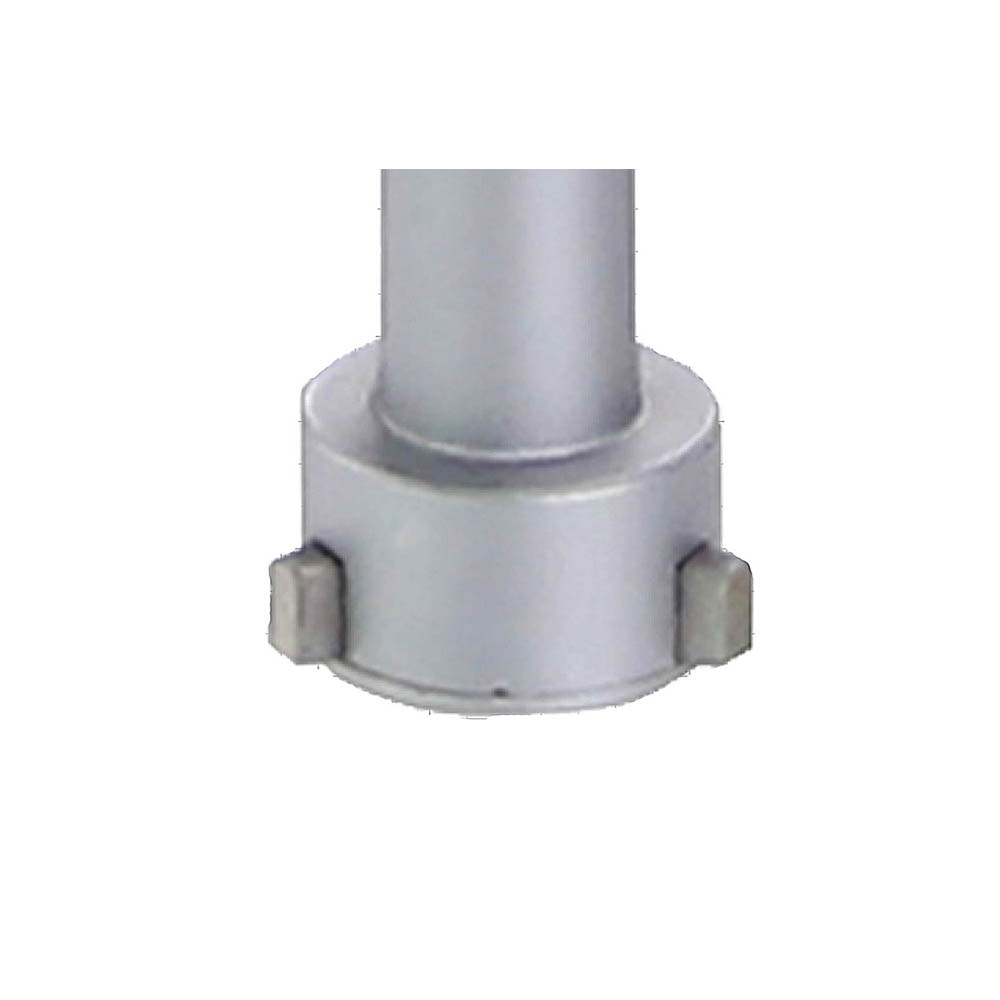

Three point internal micrometer 8-10 mm analogue
- with setting gauge 8 mm and extension 100 x Ø 5,7 mm
- for blind hole
- satin chrome finished
- DIN 863
- in case/box
Range 8 - 10 mm
| Accuracy: | 0,004 mm |
|---|---|
| Range: | 8 - 10 mm |
| Reading: | 0,001 mm |
| Type: | analogue, with setting gauge and extension |
| usable for measuring of: | blind hole |
Technical Data
| Messbereich mm Range mm |
Einstellring mm Standard mm |
Verlängerung mm Extension mm |

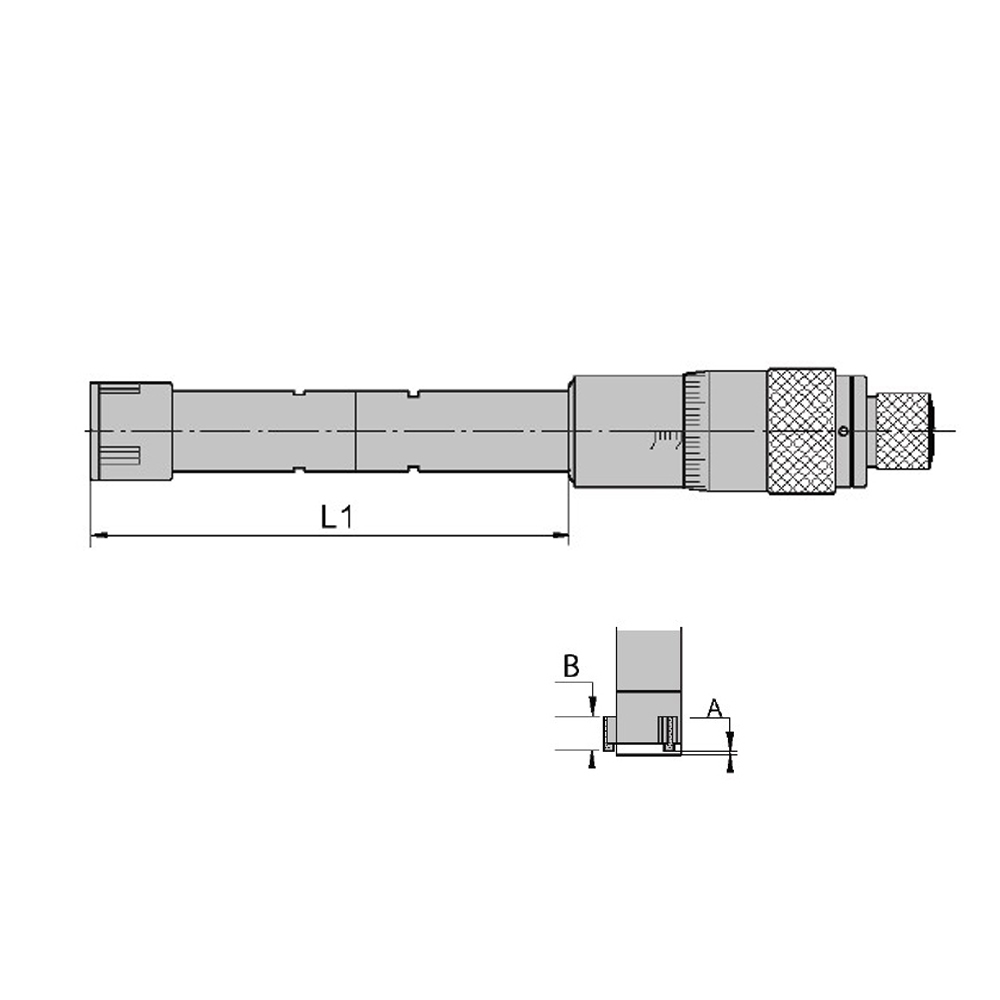

A mm | B mm | L1 mm | Ablesung mm Reading mm |
Genauigkeit* µm Accuracy* µm |
| 8 - 10 | 8 | 100 x Ø 5,7 | 0,5 | 2,5 | 55 | 0,001 | 0,004 |
| * bei vollanliegenden Messflächen / at full contact of the measuring faces | |||||||
