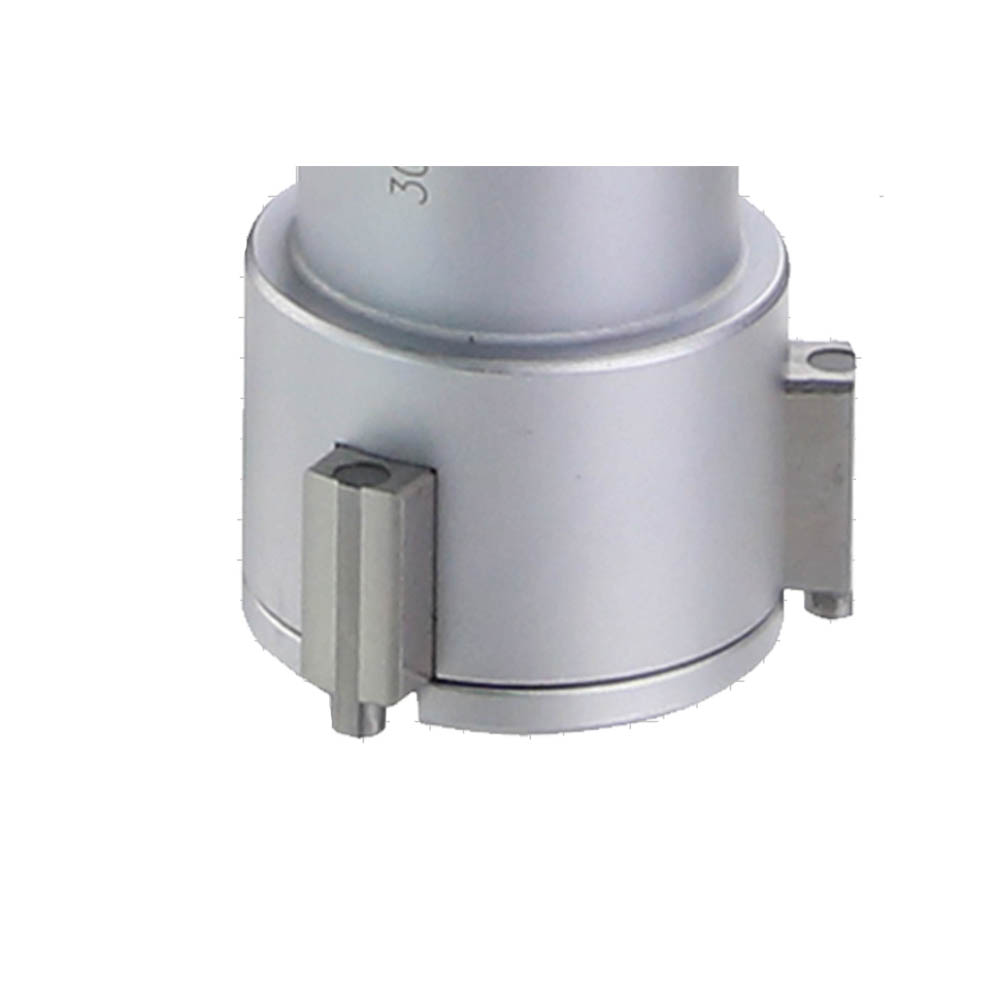

Three point internal micrometer 12-16 mm analogue DIN 863
€168.60*
€200.63 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
312.133
Customs tariff number
9017 3000
European Article Number
4054469119465
Weight
0,8 kg
Stock:
11
Related links:
Request Item
Product information "Three point internal micrometer 12-16 mm analogue DIN 863"
Three point internal micrometer 12-16 mm analogue
- with setting gauge 12 mm and extension 150 x Ø 11,7 mm
- for blind hole
- with carbide measuring faces
- satin chrome finished
- DIN 863
- in case/box
Range 12 - 16 mm
| Accuracy: | 0,005 mm |
|---|---|
| Range: | 12 - 16 mm |
| Reading: | 0,005 mm |
| Type: | analogue, with carbide measuring faces, with setting gauge and extension |
| usable for measuring of: | blind hole |
Technical Data
| Messbereich mm Range mm |
Einstellring mm Standard mm |
Verlängerung mm Extension mm |
A mm | B mm | L1 mm | Ablesung mm Reading mm |
Genauigkeit* µm Accuracy* µm |
| 12 - 16 | 12 | 150 x Ø 11,7 | 0,5 | 6,3 | 80 | 0,005 | 0,005 |
| * bei vollanliegenden Messflächen / at full contact of the measuring faces | |||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
