Three point internal micrometer 40-50 mm analogue DIN 863
€294.00*
€349.86 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
312.138
Customs tariff number
9017 3000
European Article Number
4054469119519
Weight
2 kg
Stock:
9
Related links:
Request Item
Product information "Three point internal micrometer 40-50 mm analogue DIN 863"

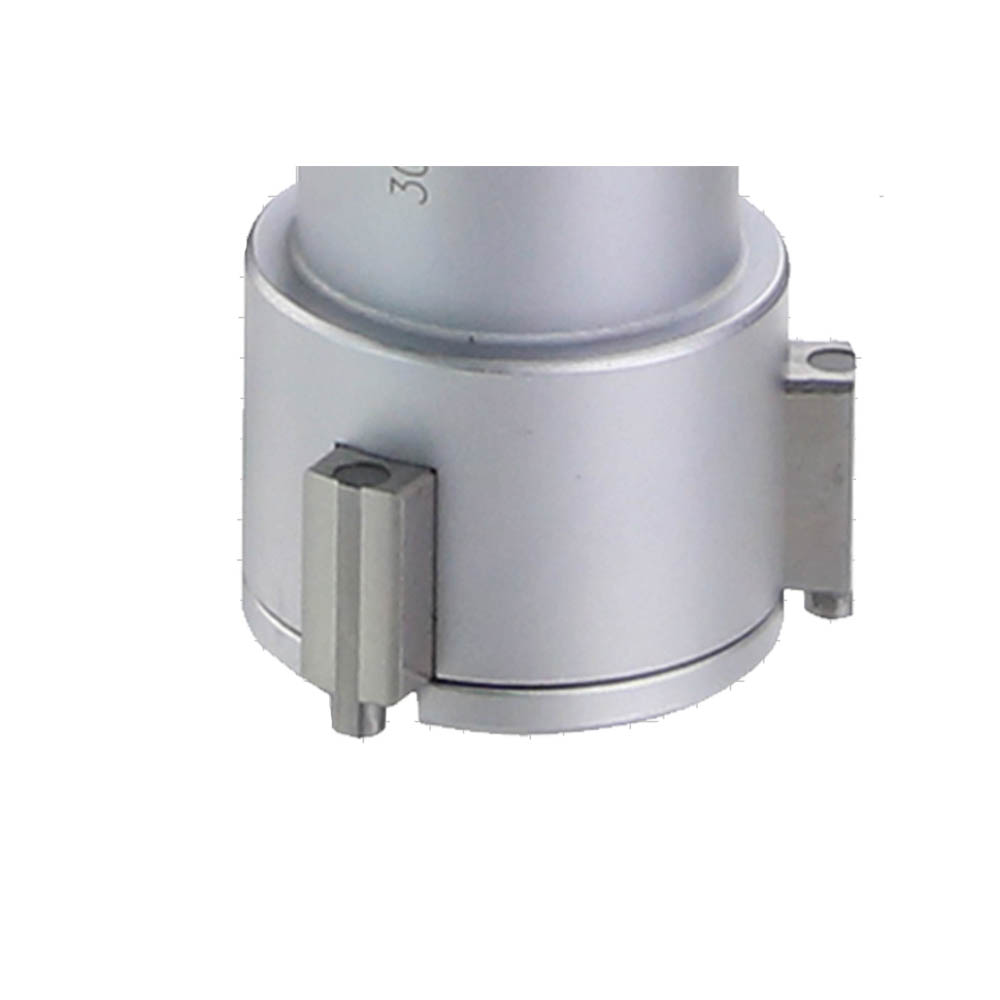

Three point internal micrometer 40-50 mm analogue
- with setting gauge 40 mm and extension 150 x Ø 23,4 mm
- for blind hole
- with carbide measuring faces
- satin chrome finished
- DIN 863
- in case/box
Range 40 - 50 mm
| Accuracy: | 0,005 mm |
|---|---|
| Range: | 40 - 50 mm |
| Reading: | 0,005 mm |
| Type: | analogue, with carbide measuring faces, with setting gauge and extension |
| usable for measuring of: | blind hole |
Technical Data
| Messbereich mm Range mm |
Einstellring mm Standard mm |
Verlängerung mm Extension mm |
A mm | B mm | L1 mm | Ablesung mm Reading mm |
Genauigkeit* µm Accuracy* µm |
| 40 - 50 | 40 | 150 x Ø 23,4 | 0,5 | 13,8 | 97 | 0,005 | 0,005 |
| * bei vollanliegenden Messflächen / at full contact of the measuring faces | |||||||
