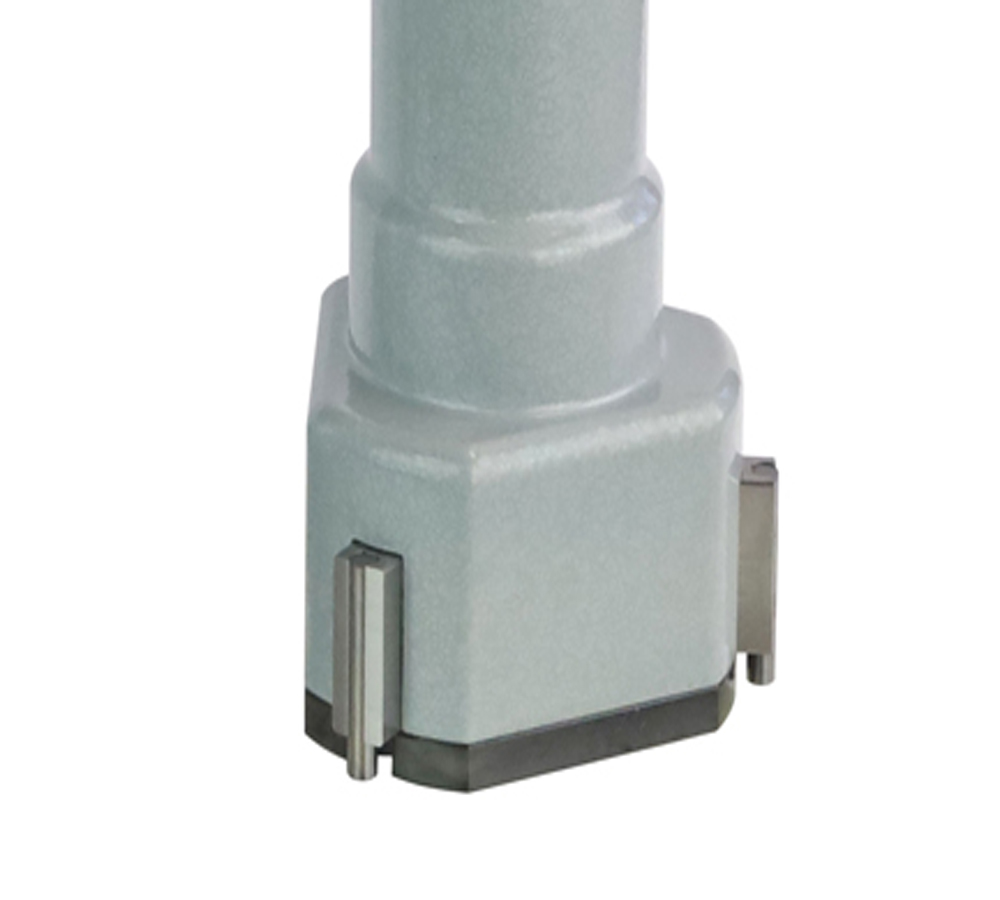

Three point internal micrometer 50-63 mm analogue DIN 863
Product number:
312.160
Customs tariff number
9017 3000
European Article Number
4054469119670
Weight
3,4 kg
Stock:
0
Related links:
Request Item
Product information "Three point internal micrometer 50-63 mm analogue DIN 863"
Three point internal micrometer 50-63 mm analogue
- with setting gauge 62 mm and extension 150 x Ø 23,4 mm
- for blind hole
- with carbide measuring faces
- satin chrome finished
- DIN 863
- in case/box
Range 50 - 63 mm
| Accuracy: | 0,005 mm |
|---|---|
| Range: | 50 - 63 mm |
| Reading: | 0,005 mm |
| Type: | analogue, with carbide measuring faces, with setting gauge and extension |
| usable for measuring of: | blind hole |
Technical Data
| Messbereich mm Range mm |
Einstellring mm Standard mm |
Verlängerung mm Extension mm |
A mm | B mm | L1 mm | Ablesung mm Reading mm |
Genauigkeit* µm Accuracy* µm |
| 50 - 63 | 62 | 150 x Ø 23,4 | 0,5 | 17,7 | 114 | 0,005 | 0,005 |
| * bei vollanliegenden Messflächen / at full contact of the measuring faces | |||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
