Collet chuck ER 40 with polygonal taper
Product number:
12-SF6-ER40-65
Customs tariff number
8466 1038
European Article Number
4049794682722
Weight
1,95 kg
Stock:
0
Related links:
Request Item
Product information "Collet chuck ER 40 with polygonal taper"
Collet chuck polygonal taper ER 40
- size 6 (63)
- collet ER 40
| DIN: | Polygonal taper |
|---|---|
| Size: | 6 (63) |
| Type: | Collet chucks |
| for collets: | ER40 |

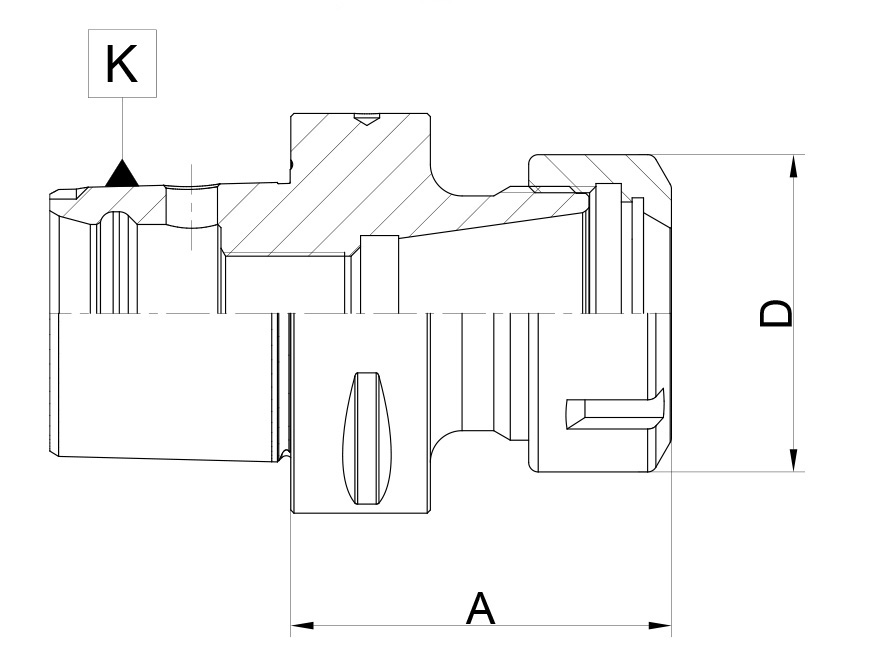

Technical Data
| Größe / Size |
Spannzange / Collet |
A mm |
D mm |
| 6 (63) | ER 16 | 100 | 32 |
| 6 (63) | ER 20 | 60 | 35 |
| 6 (63) | ER 25 | 60 | 45 |
| 6 (63) | ER 32 | 60 | 50 |
| 6 (63) | ER 40 | 65 | 63 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
