Face mill holder, polygonal taper Ø 22 mm

Product information "Face mill holder, polygonal taper Ø 22 mm"

Face mill holder Ø 22 mm with polygonal taper

- size 6 (63)
- Ø 22 mm

DIN: Polygonal taper
Size: 6 (63)
Type: Face mill holders
Ø : 22 mm

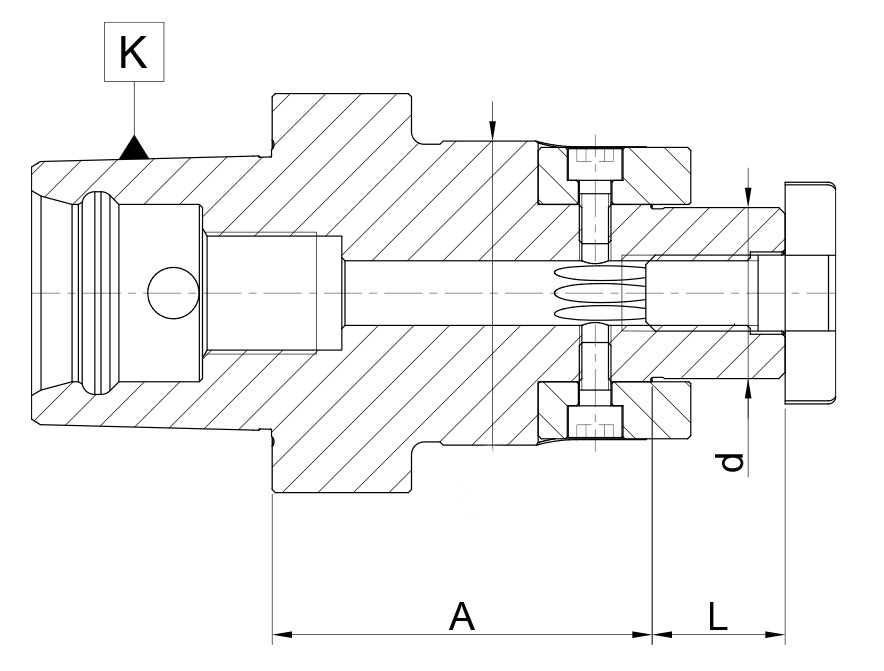

Technical Data

Größe /
Size
d
mm
A
mm
L
mm
6 (63) 16 50 17
6 (63) 22 50 19
6 (63) 27 60 21
6 (63) 32 60 24
6 (63) 40 60 27

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
