Shrink chuck, polygonal taper Ø 12 mm
Product number:
12-SHF6-12-80
Customs tariff number
8466 1038
European Article Number
4049794682814
Weight
1,15 kg
Stock:
0
Related links:
Request Item
Product information "Shrink chuck, polygonal taper Ø 12 mm"
Shrink chuck Ø 12 mm with polygonal taper
- size 6 (63)
- Ø 12 mm
| DIN: | Polygonal taper |
|---|---|
| Size: | 6 (63) |
| Type: | Shrink chucks |
| Ø : | 12 mm |

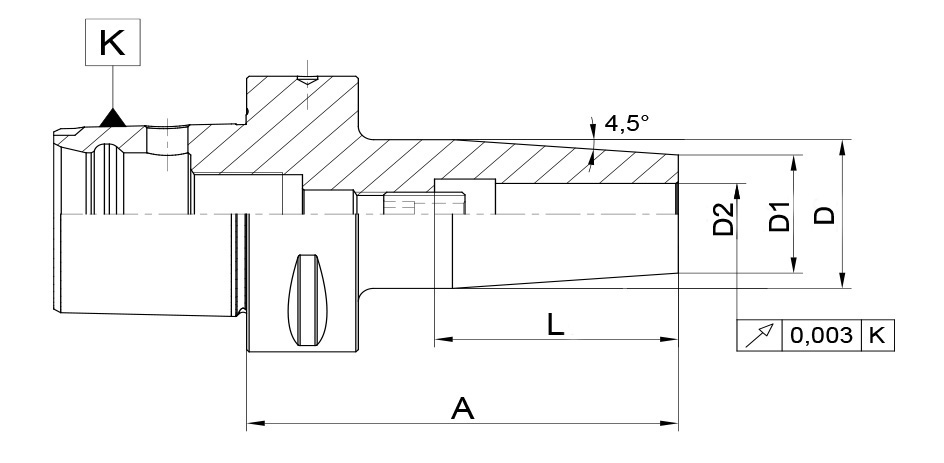

Technical Data
| Größe / Size |
D2 mm |
D1 mm |
D mm |
L mm |
A mm |
| 6 (63) | 6 | 21 | 27 | 36 | 80 |
| 6 (63) | 8 | 21 | 27 | 36 | 80 |
| 6 (63) | 10 | 24 | 32 | 43 | 80 |
| 6 (63) | 12 | 24 | 32 | 48 | 80 |
| 6 (63) | 14 | 27 | 34 | 48 | 85 |
| 6 (63) | 16 | 27 | 34 | 51 | 85 |
| 6 (63) | 18 | 33 | 42 | 51 | 85 |
| 6 (63) | 20 | 33 | 42 | 53 | 85 |
| 6 (63) | 25 | 44 | 53 | 57 | 90 |
| 6 (63) | 32 | 44 | 53 | 59 | 95 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
