Soft top jaw HC12 for power chucks
€26.18*
€31.15 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
29-HC-12
Customs tariff number
8466 2091
European Article Number
4049794002438
Weight
2,15 kg
Stock:
18
Related links:
Request Item
Product information "Soft top jaw HC12 for power chucks"
Soft top jaw type HC12 for hydraulic power chucks
- serration 1,5 x 60 °
- jaws compatible with Kitagawa power chucks
- price per piece
| Jaws: | Soft top jaws |
|---|---|
| Jaws type: | HC12 |

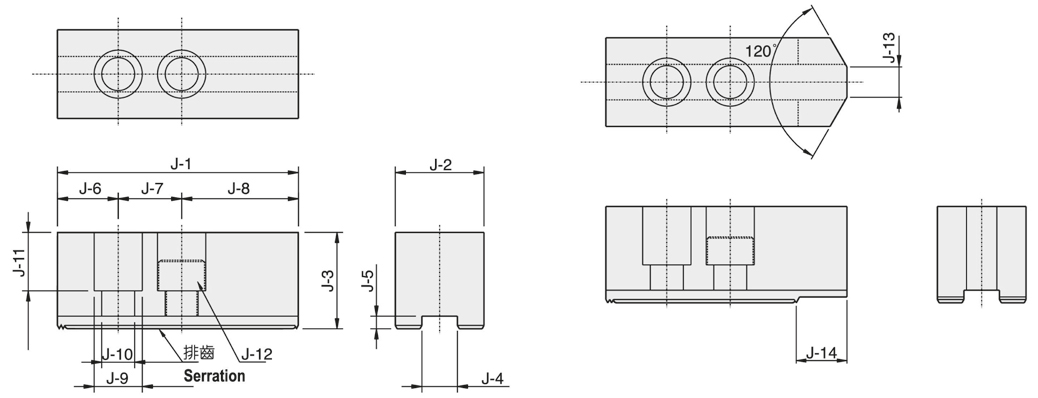

Technical Data
| Typ / Type |
J-1 mm |
J-2 mm |
J-3 mm |
J-4 mm |
J-5 mm |
J-6 mm |
J-7 mm |
J-8 mm |
J-9 mm |
J-10 mm |
J-11 mm |
J-12 | J-13 mm |
Verzahnung / Selection |
| HC04 | 45,5 | 23 | 23 | 10 | 4 | 10 | 14 | 25,5 | 13,5 | 8,5 | 14 | M8 | 4 | 1,5 x 60° |
| HC05 | 54 | 23 | 25 | 10 | 4 | 12 | 14 | 28 | 13,5 | 8,5 | 16 | M8 | 5 | 1,5 x 60° |
| HC06 | 66 | 32 | 28 | 12 | 5 | 12 | 20 | 34 | 17 | 11 | 16 | M10 | 5 | 1,5 x 60° |
| HC08 | 95 | 35 | 38 | 14 | 5 | 24 | 25 | 46 | 19 | 13 | 23 | M12 | 12 | 1,5 x 60° |
| HC10 | 110 | 40 | 42 | 16 | 6 | 30 | 30 | 50 | 19 | 13 | 27 | M12 | 18 | 1,5 x 60° |
| HC12 | 130 | 50 | 50 | 21 | 6 | 39 | 30 | 60 | 25 | 17 | 30 | M16 | 18 | 1,5 x 60° |
| HC12-1 | 130 | 50 | 50 | 18 | 6 | 39 | 30 | 60 | 23 | 15 | 30 | M14 | 18 | 1,5 x 60° |
| HC-15 | 165 | 62 | 62 | 22 | 8 | 37 | 43 | 85 | 32 | 21 | 38 | M20 | - | 1,5 x 60° |
| HC-15-1 | 135 | 50 | 50 | 25,5 | 5 | 26 | 43 | 66 | 32 | 21 | 39 | M20 | - | 1,5 x 60° |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
