T-nut type N0212-0H
€31.65*
€37.66 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
29-N0212-0H
Customs tariff number
8466 2098
European Article Number
4049794025482
Weight
0,2 kg
Stock:
37
Related links:
Request Item
Product information "T-nut type N0212-0H"

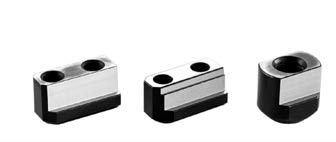

T-nut for power chucks, type N0212-0H
- matching chuck: N-212, NB-212
- screws not included
- price per piece
Technical Data
| Typ / Type |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
H | J mm |
K mm |
L mm |
M mm |
Abb. / Fig. |
Passend zu Futter / Matching chuck |
| N0205-OH | 26 | 14,5 | 15 | 10 | 14 | 6 | 5,5 | M8 | 5 | 2 | - | - | 1 | N-204, N-205 |
| N0206-OH | 36 | 17,5 | 18,5 | 12 | 20 | 8,2 | 7,5 | M10 | 8 | 2,5 | - | - | 1 | N-206, NB-306 |
| N0208-OH | 46,5 | 20,5 | 20,5 | 14 | 25 | 10,5 | 8,5 | M12 | 12 | 4 | - | - | 1 | N-208, NB-208 |
| N0210-OH | 51 | 22,5 | 21,5 | 16 | 30 | 11 | 8,5 | M12 | 11 | 3 | - | - | 1 | N-210, NB-210 |
| N0212-OH | 55,5 | 29,5 | 27,8 | 21 | 30 | 12 | 11,5 | M16 | 13 | 4,5 | - | - | 1 | N-212, NB-212 |
| N0215-OH | 80 | 33,5 | 45,5 | 24 | 43 | 17 | 16,5 | M20 | 11 | 5 | 8 | 22 | 2 | N-215, N-218 |
| V0206-OH | 36,5 | 17,5 | 22,5 | 12 | 20 | 7,5 | 7,5 | M10 | 6 | 3 | - | - | 1 | V-206, NHT-208 |
| V0208-OH | 48 | 20,5 | 25,5 | 14 | 25 | 11 | 9,5 | M12 | 8 | 4 | - | - | 1 | V-208 |
| V0210-OH | 55 | 22,5 | 25,5 | 16 | 30 | 11 | 9,5 | M12 | 8 | 4 | - | - | 1 | V-210 |
| V0212-OH | 55,5 | 26,5 | 33,5 | 18 | 30 | 11,5 | 13,5 | M14 | 12 | 5 | - | - | 1 | V-212 |
| V0215-OH | 42 | 35 | 39,2 | 25,5 | - | - | 19 | M20 | - | 25 | - | - | 3 | V-215, V-218 |
| Lieferung erfolgt ohne Schrauben / Screws not included | ||||||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
