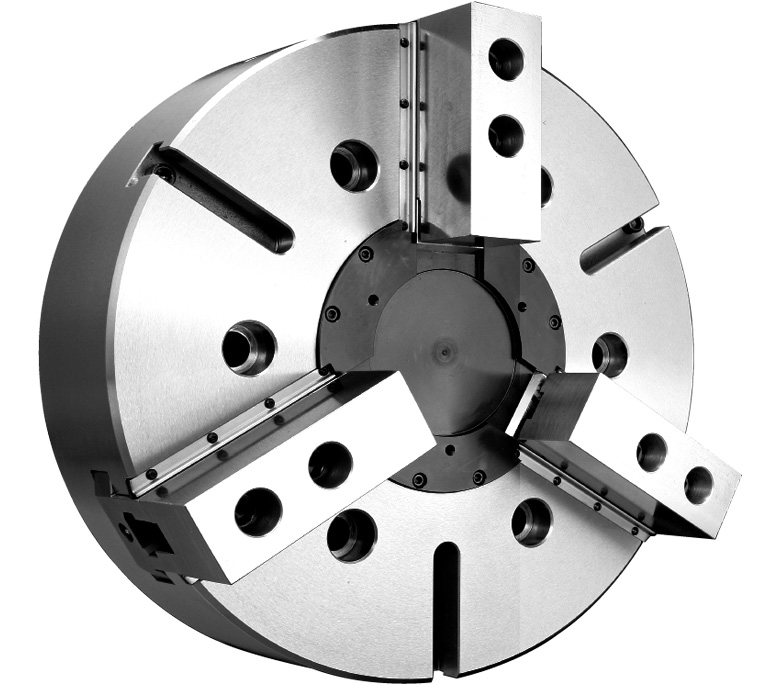

Product information "Three-jaw power chuck V-206A5 Ø 165 mm"
Three-jaw power chuck V-206A5 DIN 55026,
without bore - serration 1,5 x 60°
- type V-206A5 Ø 165 mm
- steel
- all sliding surfaces are hardened and ground
for high runout precision and long service life
- lubrication nipple in each base jaw
- incl. 1 set each of hardened base jaws and soft top jaws,
fixation screws
| DIN: | 55026 |
|---|---|
| Through hole: | without |
| Type: | 3-jaw lathe chucks |
| Ø : | 165 mm |

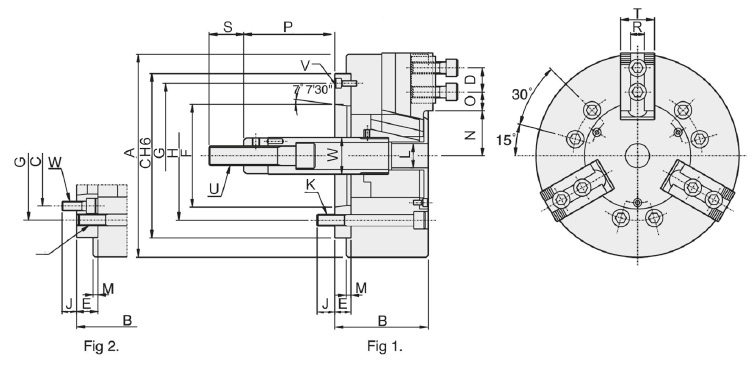

Technical Data
| Typ / Type |
Fig | Backenhub / Jaw stroke mm |
Zugrohrhub / Plunger stroke mm |
Max. Betätigungskraft / Max. pull force (kN) |
Max. Spannkraft / Max. gripping force (kN) |
Max. Betätigungsdruck / Max. operating pessure (kN) |
| V-206A5 | 1 | 8,5 | 20 | 18 | 52,49 | 26,5 |
| Trägheitsmoment / Moment of inertia (kgf-m2) |
Passende harte Aufsatzbacken / Matching hard jaws |
Passende weiche Aufsatzbacken / Matching soft jaws |
Passender Zylinder / Matching cylinder |
Max. Drehzahl / Max. speed (rpm) |
kg | |
| 0,045 | HJ06 | HC06 | MH105 | 5270 | 12,5 | |
| Typ / Type |
A mm |
B mm |
H mm |
D mm |
C(H6) mm |
K | M mm |
J mm |
L mm |
E mm |
F mm |
| V-206A5 | 165 | 84 | 104,78 | 20 | 140 | 6-M10 | 5 | 14 | 21 | 15 | 82,563 |
| G mm |
O max. |
O min. |
P max. |
P min. |
S mm |
U max. |
W mm |
N max. |
T mm |
R mm |
V |
| 116 | 18 | 7,5 | 89,6 | 69,6 | 36 | M16x2,0 | 34 | 37,8 | 31 | 12 | 3-M6 |
| Inkl. je 1 Satz Grund- und weiche Aufsatzbacken, Befestigungsschrauben / Incl. 1 set each of hardened base jaws and soft top jaws, fixation screws |
|||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories

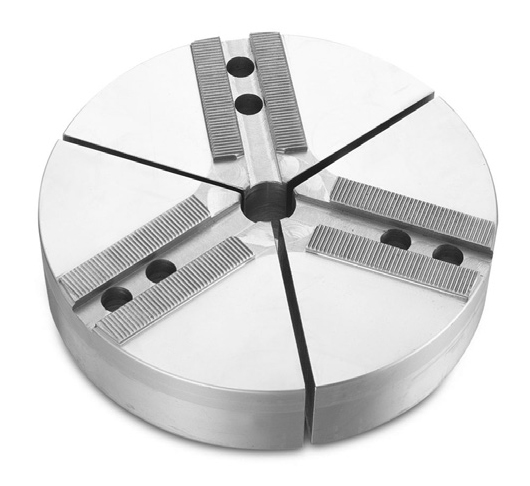

Soft pie jaws for power chucks,Serration 1,5 x 60° - for chuck-type 206 - material: steel- suitable for thin-walled work pieces - large clamping nearly the entire circumference of the work piece - can be used as blanks for special jaws - price per set

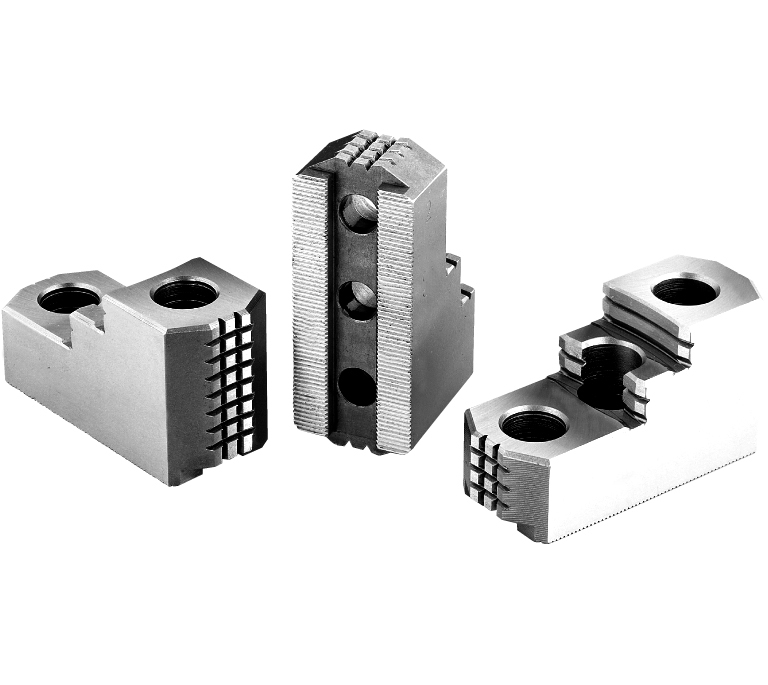

Hard top jaw type HJ06 for hydraulic power chucks - serration 1,5 x 60°- jaws compatible with Kitagawa power chucks- price per piece

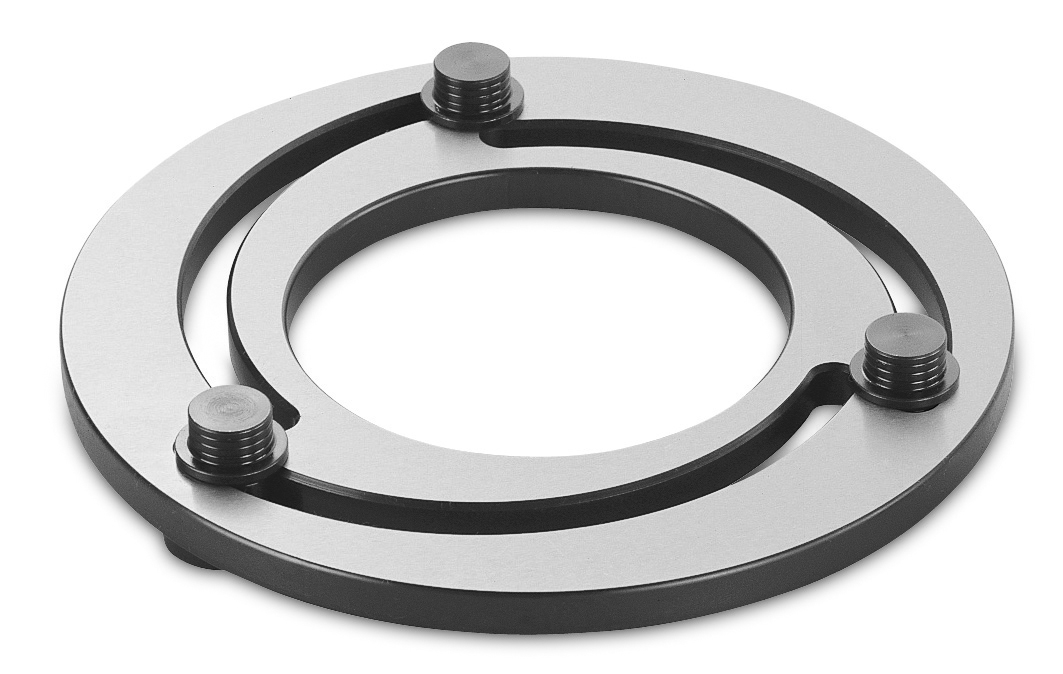

Jaw turning fixtures for power chucks - for chuck type 206- easy of handling

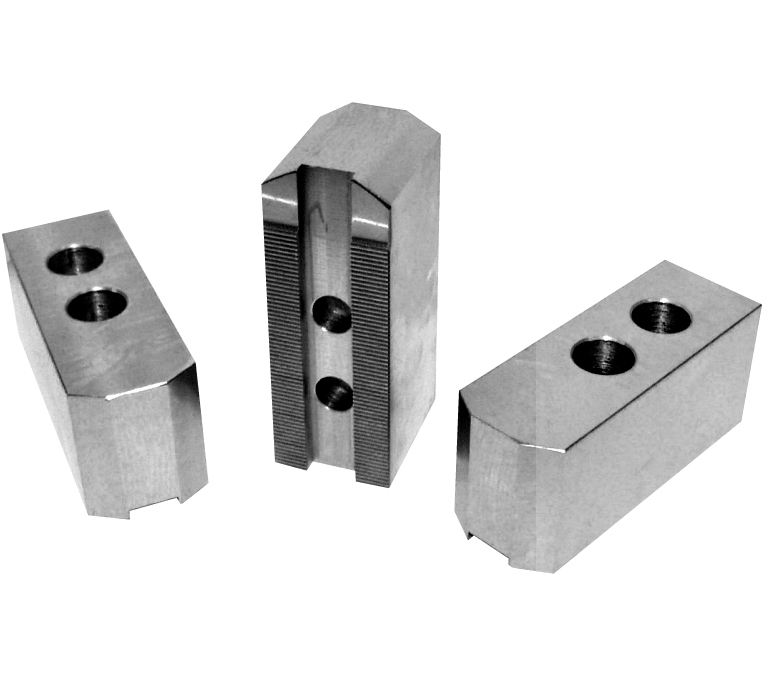

Soft top jaw type HC06 for hydraulic power chucks - serration 1,5 x 60 °- jaws compatible with Kitagawa power chucks- price per piece

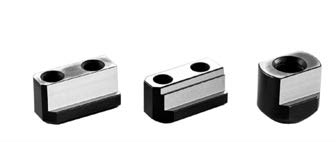

T-nut for power chucks, type V0206-0H - matching chuck: V-206, NH-208 - screws not included- price per piece
