Three-jaw power chuck V-206 Ø 165 mm
€958.19*
Delivery time upon request
Product information "Three-jaw power chuck V-206 Ø 165 mm"
Three-jaw power chuck V-206 centre mount,
without bore - serration 1,5 x 60°
- type V-206 Ø 165 mm
- steel
- all sliding surfaces are hardened and ground
for high runout precision and long service life
- lubrication nipple in each base jaw
- incl. 1 set each of hardened base jaws and soft top jaws,
fixation screws
| DIN: | centre mount |
|---|---|
| Through hole: | without |
| Type: | 3-jaw lathe chucks |
| Ø : | 165 mm |
Technical Data
| Typ / Type |
Backenhub / Jaw stroke mm |
Zugrohrhub / Plunger stroke mm |
Spannbereich max. / Gripping max. mm |
Spannbereich min. / Gripping min. mm |
Max. Betätigungskraft / Max. pull force (kN) |
Max. Spannkraft / Max. gripping force (kN) |
| V-206 | 8,5 | 20 | 165 | 12 | 18 | 51,5 |
| Max. Betätigungsdruck / Max. operating pessure (kN) |
Trägheitsmoment / Moment of inertia (kgf-m2) |
Passende harte Aufsatzbacken / Matching hard jaws |
Passende weiche Aufsatzbacken / Matching soft jaws |
Passender Zylinder / Matching cylinder |
Max. Drehzahl / Max. speed (rpm) |
kg |
| 25,5 | 0,045 | HJ06 | HC06 | MH100 | 5000 | 12 |
| Typ / Type |

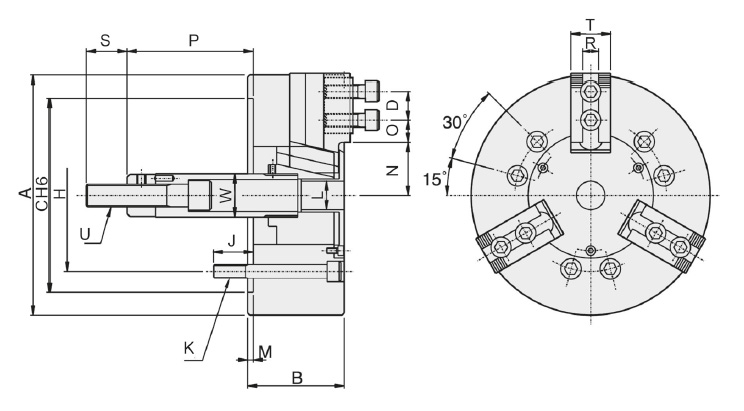

A mm |
B mm |
C(H6) mm |
M mm |
H mm |
L mm |
K mm |
J mm |
D mm |
| V-206 | 165 | 74 | 140 | 5 | 104,78 | 21 | 6-M10 | 14 | 20 |
| N max. mm |
O max. mm |
O min. mm |
P max. mm |
P min. mm |
T mm |
R mm |
S mm |
U mm |
W mm |
| 37,8 | 13 | 7,5 | 104,6 | 84,6 | 31 | 12 | 36 | M16x2,0 | 34 |
| Inkl. je 1 Satz Grund- und weiche Aufsatzbacken, Befestigungsschrauben / Incl. 1 set each of hardened base jaws and soft top jaws, fixation screws |
|||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
