Three-jaw power chuck V-208 Ø 210 mm
€1,117.96*
Available, delivery time: 1-3 workdays
Product information "Three-jaw power chuck V-208 Ø 210 mm"
Three-jaw power chuck V-208 centre mount,
without bore - serration 1,5 x 60°
- type V-208 Ø 210 mm
- steel
- all sliding surfaces are hardened and ground
for high runout precision and long service life
- lubrication nipple in each base jaw
- incl. 1 set each of hardened base jaws and soft top jaws,
fixation screws
| DIN: | centre mount |
|---|---|
| Through hole: | without |
| Type: | 3-jaw lathe chucks |
| Ø : | 210 mm |
Technical Data
| Typ / Type |
Backenhub / Jaw stroke mm |
Zugrohrhub / Plunger stroke mm |
Spannbereich max. / Gripping max. mm |
Spannbereich min. / Gripping min. mm |
Max. Betätigungskraft / Max. pull force (kN) |
Max. Spannkraft / Max. gripping force (kN) |
| V-208 | 8,8 | 21 | 210 | 12 | 25 | 75 |
| Max. Betätigungsdruck / Max. operating pessure (kN) |
Trägheitsmoment / Moment of inertia (kgf-m2) |
Passende harte Aufsatzbacken / Matching hard jaws |
Passende weiche Aufsatzbacken / Matching soft jaws |
Passender Zylinder / Matching cylinder |
Max. Drehzahl / Max. speed (rpm) |
kg |
| 24,5 | 0,137 | HJ08 | HC08 | MH125 | 4000 | 23 |

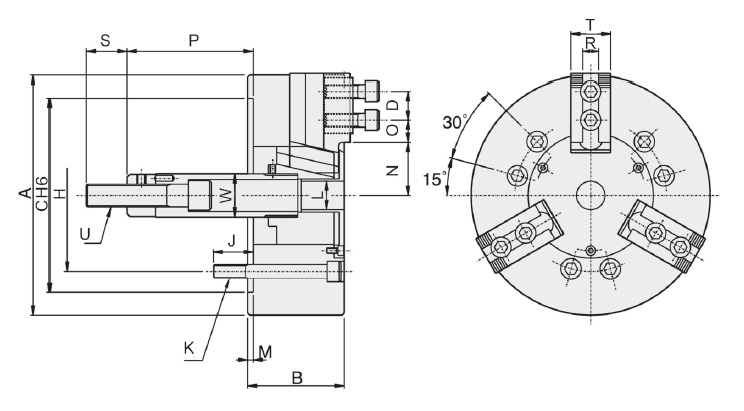

| Typ / Type |
A mm |
B mm |
C(H6) mm |
M mm |
H mm |
L mm |
K mm |
J mm |
D mm |
| V-208 | 210 | 85 | 170 | 5 | 133,35 | 25 | 6-M12 | 20 | 25 |
| N max. mm |
O max. mm |
O min. mm |
P max. mm |
P min. mm |
T mm |
R mm |
S mm |
U mm |
W mm |
| 44,3 | 22,5 | 9 | 132 | 111 | 35 | 14 | 36 | M20x2,5 | 38 |
| Inkl. je 1 Satz Grund- und weiche Aufsatzbacken, Befestigungsschrauben / Incl. 1 set each of hardened base jaws and soft top jaws, fixation screws |
|||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
