Quick-change tapping chuck VDI 50, M14-M36
€356.98*
Available, delivery time: 1-3 workdays
Product information "Quick-change tapping chuck VDI 50, M14-M36"
Quick-change tapping chuck, VDI (DIN 69880)
- with length compensation
- VDI 50
- size 3
- clamping range M14 - M36
| DIN: | 69880 |
|---|---|
| Size: | VDI 50 |
| Type: | Quick-change chucks |

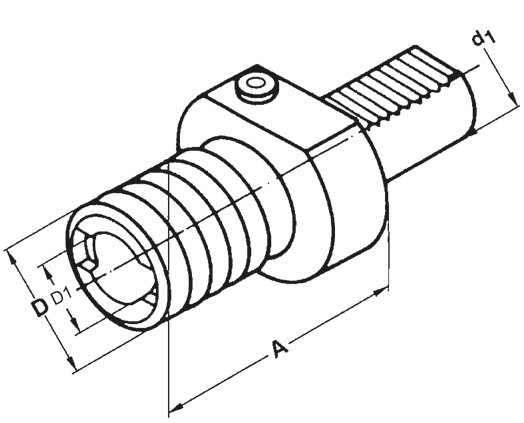

Technical Data
| VDI | Größe / Size |
Bereich / Range |
A mm |
D mm |
D1 mm |
| VDI 20 | 1 | M3 - M14 | 55 | 38 | 19 |
| VDI 25 | 1 | M3 – M14 | 55 | 38 | 19 |
| VDI 30 | 1 | M3 – M14 | 55 | 38 | 19 |
| VDI 30 | 2 | M5 – M22 | 77 | 54 | 31 |
| VDI 40 | 1 | M3 – M14 | 55 | 38 | 19 |
| VDI 40 | 2 | M5 - M22 | 77 | 54 | 31 |
| VDI 40 | 3 | M14 – M36 | 108 | 78 | 48 |
| VDI 50 | 2 | M5 – M22 | 77 | 54 | 31 |
| VDI 50 | 3 | M14 – M36 | 108 | 78 | 48 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
