Combination shell mill adapter DIN 2080 SK40, D:27
€37.08*
€44.13 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-7332-40-27
Customs tariff number
8466 1038
European Article Number
4049794016817
Weight
1,55 kg
Stock:
13
Related links:
Request Item
Product information "Combination shell mill adapter DIN 2080 SK40, D:27"
Combination shell mill adapter DIN 2080
- SK 40
- D: 27 mm
| Size: | SK 40 |
|---|---|
| Tool holders: | DIN 2080 |
| Type: | Combination shell mill adaptors |
| Ø : | 27 mm |

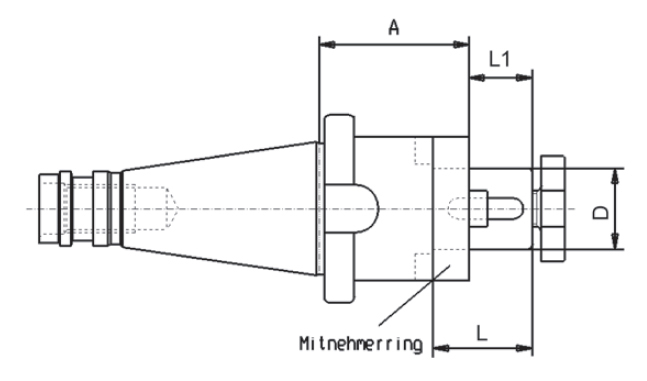

Technical Data
| Größe / Size |
D mm |
A mm |
L mm |
L1 mm |
| SK 30 | 16 | 35 | 27 | 17 |
| SK 30 | 22 | 35 | 31 | 19 |
| SK 30 | 27 | 35 | 33 | 21 |
| SK 40 | 13 | 52 | 22 | 12 |
| SK 40 | 16 | 52 | 27 | 17 |
| SK 40 | 22 | 52 | 32 | 19 |
| SK 40 | 27 | 52 | 33 | 21 |
| SK 40 | 32 | 52 | 38 | 24 |
| SK 40 | 40 | 52 | 41 | 27 |
| SK 50 | 16 | 55 | 27 | 17 |
| SK 50 | 22 | 55 | 31 | 19 |
| SK 50 | 27 | 55 | 33 | 21 |
| SK 50 | 32 | 55 | 38 | 24 |
| SK 50 | 40 | 55 | 41 | 27 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
