Combi shell mill adapter DIN 69871 SK50, D:27
€64.73*
€77.03 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-7301-50-27
Customs tariff number
8466 1038
European Article Number
4049794017760
Weight
3,5 kg
Stock:
3
Related links:
Request Item
Product information "Combi shell mill adapter DIN 69871 SK50, D:27"
Combination shell mill adapter DIN 69871
- SK 50
- D: 27 mm
| Size: | SK 50 |
|---|---|
| Tool holders: | DIN 69871 |
| Type: | Combination shell mill adaptors |
| Ø : | 27 mm |

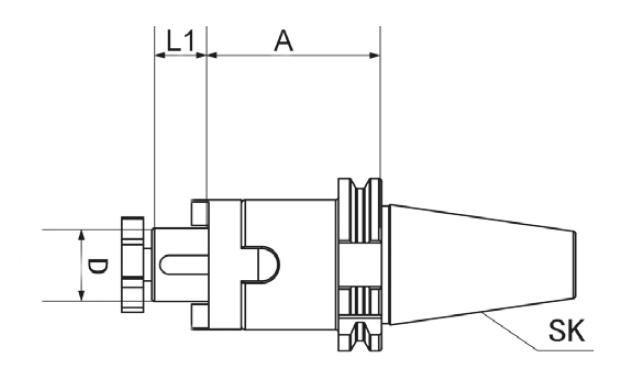

Technical Data
| Größe / size |
D mm |
A mm |
L mm |
L1 mm |
| SK 40 | 13 | 55 | 22 | 12 |
| SK 40 | 16 | 55 | 27 | 17 |
| SK 40 | 22 | 55 | 32 | 19 |
| SK 40 | 27 | 55 | 33 | 21 |
| SK 40 | 32 | 60 | 38 | 24 |
| SK 40 | 40 | 60 | 41 | 27 |
| SK 50 | 16 | 55 | 27 | 17 |
| SK 50 | 22 | 55 | 31 | 19 |
| SK 50 | 27 | 55 | 33 | 21 |
| SK 50 | 32 | 55 | 38 | 24 |
| SK 50 | 40 | 55 | 41 | 27 |
| Gewuchtet G = 6,3 15.000 U/min. / | ||||
| Balanced G = 6,3 15.000 U/min. | ||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
